High-Speed Steel Pipe Manufacturing Machine/Custom Steel Pipe Machine Solutions

Product Description

Product Parameters

Model	Tube O.D (mm)	Thickness (mm)	Square&Rectangle (mm)	Thickness (mm)	Speed (m/min)
HG16	φ6~16	0.2~0.8			30~120
HG20	φ7~20	0.2~1.0			30~120
HG25	φ9~25.4	0.25~1.2			30~120
HG32	φ10~32	0.25~1.5	8X8~25X25	0.25~1.2	30~120
HG32		0.3~2.0	10X6~30X20	0.3~1.5	30~100
HG40	φ12.7~40	0.3~1.8	10X10~30X30 20X10~40X20	0.3~1.5	30~110
HG40		0.4~2.0		0.4~1.5	30~100
HG50	φ16~50.8	0.4~1.5	12.7X12.7~40X40 20X10~50X25	0.4~1.2	30~110
HG50		0.5~2.0		0.5~1.5	30~90
HG50		0.6~2.5		0.6~2.0	30~80
HG63	φ19.05~63.5	0.6~2.0	15X15~50X50 20X10~60X30	0.6~1.5	30~90
HG63		0.7~3.0		0.7~2.5	30~80
HG63		0.8~4.0		0.8~3.0	20~70
HG76	φ25.4~76.2	0.8~2.5	20X20~60X60 30X15~80X40	0.8~2.0	30~90
HG76		0.8~3.5		0.8~3.0	30~80
HG76		0.8~4.0		0.8~3.5	20~70
HG95	φ30~90	0.8~3.0	25X25~70X70 30X20~80X40	0.8~2.5	30~90
HG95		0.8~3.5		0.8~3.0	30~80
HG95		0.8~4.0		0.8~3.5	20~70
HG102	φ31.8~101.6	1.0~3.0	25X25~80X80 30X20~100X50	1.0~2.5	30~90
HG102		1.0~3.75		1.0~3.0	30~80
HG102		1.0~4.25		1.0~3.5	20~70
HG114	φ35~114.3	1.0~3.0	30X30~90X90 40X20~120X60	1.0~2.5	30~80
HG114		1.2~4.25		1.2~4.0	20~70
HG127	φ40~127	1.2~3.5	30X30~100X100 40X20~120X80	1.2~3.0	20~70
HG127		1.5~5.0		1.5~4.5	15~60
HG140	φ50~141.3	1.2~4.0	40X40~110X100 50X30~150X70	1.2~3.5	15~60
HG140		1.5~5.5		1.5~5.0	15~60
HG168	φ60~168.3	1.5~5.0	50X50~130X130 60X40~160X80	1.5~4.5	15~50
HG168		2.0~6.0		2.0~5.5	15~50
HG168	φ76.2~168.3	2.5~8.0	60X60~130X130 80X40~160X80	2.5~7.0	10~40
HG219	φ89~219.1	2.0~6.0	70X70~160X160 100X50~200X100	2.0~5.5	10~40
HG219		3.0~8.0		3.0~7.5	10~40
HG219		4.0~10.0		4.0~9.0	10~40
HG273	φ114.3~273	4.0~10.0	90X90~200X200 120X60~260X130	4.0~9.0	10~40
HG273		4.5~12.0		4.5~11.0	10~35

Production Process Flow

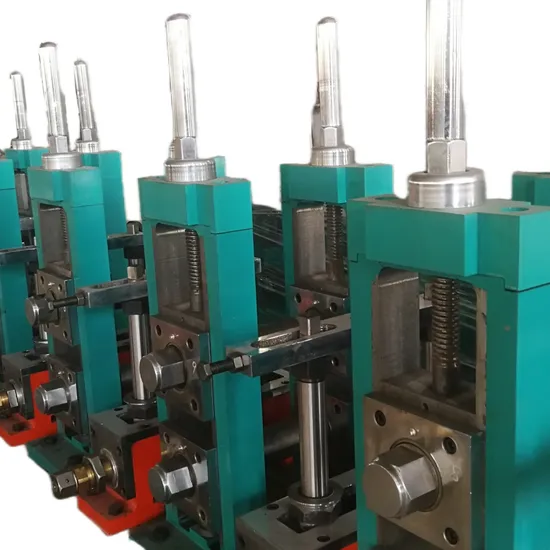

Detailed Photos
Certifications

Factory
Company Profile
Botou Boheng Metallurgical Equipment Manufacturing Co., Ltd.
Expert Manufacturer of High-Frequency Welded Pipe Equipment and Cold-Formed Steel Solutions
Botou Boheng Electromechanical Equipment Co., Ltd. specializes in the design and production of high-frequency welded pipe equipment, slitting lines, open cold-formed steel equipment, and stainless steel machinery. We integrate scientific research, production, sales, and after-sales service, delivering comprehensive, high-quality solutions.
Our technology is based on advanced Japanese innovations, and we manufacture all equipment in strict accordance with Japanese standards. This ensures that our products feature exceptional performance, consistent quality, and advanced configurations. Our machines are recognized as world-class and have earned strong popularity in international markets.
With a team of skilled technicians and professional sales staff, we have successfully captured a major share of the domestic market. Additionally, we have expanded our reach globally, exporting equipment to countries like Thailand, Myanmar, Kazakhstan, and Uzbekistan, where our machines have been well-received.
At Botou Boheng, we prioritize product quality and after-sales service as the core of our business. We are committed to staying close to our customers with full-service support throughout the entire sales process. Our guiding principles of honesty, innovation, and mutual success ensure that we provide reliable solutions that exceed customer expectations.
We look forward to establishing long-term, sincere partnerships and working together for mutual growth and success.
FAQ
Q: Are you manufacturer?
A: Yes, we are manufacturer. We have our own technical team. Welcome to visit us.

Q: What payment terms do you accept?
A: We are flexible on payment terms, please contact us for details!

Q: What info you need before you make the proposal?
A: The pipe diameter and thickness range which you need or the profile drawings, material information, your special requirements and speed of the machine.

Q: How do you do QA?
A: We have special team do strict QA, this is our strengths:
(1)Every gear box will be tested for 8 hours with oil inside to guarantee there is no leak.
(2)Every shaft will be inspected for the centering jumpiness.
(3)Every roller will be checked to make sure its in the range of tolerance critical parts will be inspected for all dimensions.

Q: Why choose you? What is the difference between you and other Chinese supplier?
A: You can get higher quality product & better professional service from Boheng with same price.

Q: What I should do if I just start a new business?
A: Contact us immediately, we provide free consultant pre-sales service
After Sales Service
Q: I'm worried about after-sales service!
A: Warranty is one year.
Any parts damaged during warranty will be replaced for free!
We provide spare parts for life time at cost price.
Electrical parts such as boards and servo drives,we`ll provide them for life time as well at cost price.
Our engineers are available to service overseas!

---
