Product Description
Product Description

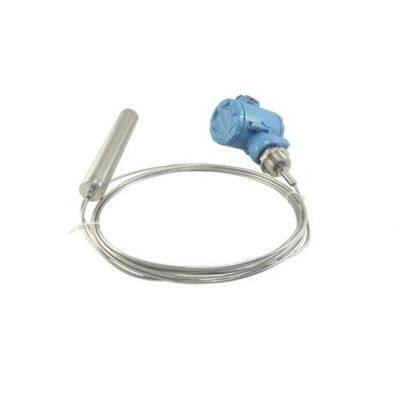

Submersible Water Level Transmitter is based on the principle that the measured liquid static pressure is proportional to the height of the liquid, and uses the piezoresistive effect of diffused silicon or ceramic sensitive elements to convert the static pressure into an electrical signal. After temperature compensation and linearity correction, it is converted into 4-20mADC standard current signal output.
The sensor part of the submersible liquid level transmitter can be directly poured into the liquid, and the transmitter part can be fixed with a flange or a bracket, which is extremely convenient to install and use. The height from the end of the water level gauge to the water surface can be accurately measured by directly putting it into the container or water body, and the water level value can be output to the outside through a 4-20mA current signal. It can also be called "static pressure level gauge, level transmitter, level sensor, water level sensor".
● Directly into the measured medium, it is very convenient to install and use.
● Solid structure, no moving parts, high reliability, long service life, high-precision measurement can be made from water, oil to thick paste, and is not affected by the foaming, deposition, and electrical characteristics of the measured medium
● Wide range of temperature compensation.
● Power reverse polarity protection and overload current limit protection.
Model
| KSL liquid submersible water level transmitter
|
Measuring Range
| 0~0.5~500m H2O
|
Power supply
| 12~36VDC (Standard 24VDC)
|
Output Signal
| 4~20mA; 0~5V; 1~5V; 0-10V; RS485
|
Accuracy
| 0.2%F.S; 0.5%FS
|
Response Time
| ≤1ms (up to 90%FS)
|
Long-term Stability
| ±2F.S/Year
|
Medium Temperature
| -20~85℃
|
Working Temperature
| -40~80℃
|
Overload Capacity
| 200%F.S
|
Insulation Resistance
| 100MΩ/250VDC
|
Sensitivity Drift
| ±2%F.S
|
Zero Drift
| ±2%F.S
|
Protection
| IP68
|
Measuring Medium
| Various medium which is compatible with SS304
|
Mechanical Vibration
| 20g (20~5000Hz)
|
Impact
| 100g (11MS)
|
Material
| Junction box: Low content Cu-Al alloy
Probe: Stainless steel
Cable: Polyurethane cable
|
Application
| Static liquid level, Liquid tank, Sewage water, Well, Lake, etc.
|
Wiring Diagram
Application Show
>>
