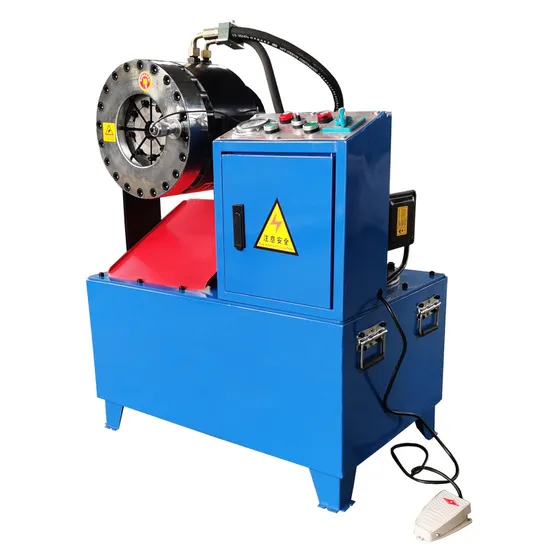

Car AC Aluminum Tube Hose Pipe Crimping Machine Hydraulic

Product Description

High Pressure Rubber Industrial Aluminum Tube Crimping MachineThe hose crimping machine is primarily utilized for the buckling process of high-pressure rubber pipe assemblies in mechanical engineering. It is also capable of buckling two-way bends, particularly large and irregularly shaped bends.
This machine is characterized by its compact and portable design, significant force, low noise levels, and ease of operation. The degree of buckling can be precisely adjusted using a scale. The machine is equipped with a high-precision guiding device on its double-inclined plane eight-flap mold seat, which ensures a more uniform mold base division.
Product Parameters

Crimping range	Φ6-51mm
Crimping accuracy	0.02mm
Operatuib mode	Manual/automatic
Max. Oil pressure(oil pump)	25Mpa
Motor power	4KW
Voltage	380v
Weight	310KGS
Packing size	1080*740*1480mm

HC51 hose crimping machine is ideal for crimping 51mm 4spiral hose.
Digital touch screen operation panel, simple operation, and high accuracy.
With a large working stroke, even elbow fitting can be crimped. Finn power-style hose crimper.
All parts are imported from famous brands,durable operating performance.
With a quick change tool, that will definitely release your hands and improve your working effieiceny. With dies rack, dies could be kept and picked up or equipped very quickly.Detailed PhotosCNC Precision Engraving Machine Head
High machining accuracy andgood sealing performance
Oil Circuit Control System
Authentic brand electromagneticdirectional valve Low noise stable operation
Hydraulic System Unit
Brand customized plunger pump Stable and durable operation Maximum pressure 31.5Mpa
Die Mold
16 sets of molds Cr12 material No deformationPackaging & ShippingElevate the safety and presentation of your machinery with our Export-Grade Wooden Crate Packaging. Crafted from the finest quality wood, our crates ensure that your equipment arrives at its destination in pristine condition.
Company Profile
FAQQ1. How can we do if there are problems with the products?
A: Our engineers will analyze the problem for you and find the best solution. If problems happened within the guaranteed time, we can replace the components for you free of charge. We have dealersin some countries, for some technical problems which you can not solve by yourself.Q2. What is the delivery time for your products?A: Once we promise the delivery time, we will try our best to fulfill it. Special procedures such as emergency inventory will be used to maintain your uninterrupted supply of the products.Q3. Is there any guarantee for your productsA: Most of our products have one year guarantee(for the main parts).Q4. How can you control your product quality?A: Quality is always considered as the most important part during our manufacturing process. All of our products come under strict quality control system from raw material inspection, component inspecting,semi-finished product inspecting,performance test of finished products,to random inspection before delivery.

---
