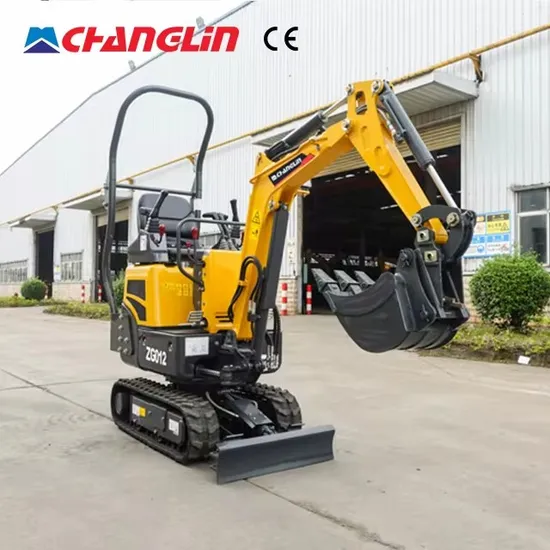

Mini Digger 1 Ton Mini Excavator

Product Description

Product Description
1 ton mini excavator
Optional Euro V/Tier4F engine(Koop engine)
Simple Structure
Easy pilot control
High safety standard
1 ton Level,Smallest pilot type mini excavator (only canopy version)
Machine weight: 1000 kg
Bucket capacity:0.02m³
Engine power : 7.6/3000 kW/rpm

Technical Specification
Machine weight				1000	kg
Bucket capacity				0.02	m³
Width of bucket				356	mm
Engine model				Koop	KD192F
Engine power				7.6/3000	kW/rpm
Max. Gradeability				26.6	°
Max.digging force of arm				6.73	kN
Max.digging force of bucket				8.38	kN
Traveling speed				1±0.2	km/h
Max. hauling force				9.6	kN
Slewing speed of platform				9-12	rpm
Operating parameter
Max. digging height				2750	mm
Max. digging depth				1475	mm
Max. digging radius				3050	mm
Max. digging radius on ground level				2950	mm
Max. dumping height				1951	mm
Min. slewing radius				1435	mm
Max. vertical digging depth				990	mm
Transportation dimension
Overall length				3200
					mm
Overall width				840	mm
Overall height				2320	mm
Other Parameter
Width of undercarriage				840	mm
Length of track				1243	mm
Width of track				180	mm
Height between undercarriage and ground				158	mm
Height between platform and ground				413	mm
Platform tail turning radius				1027	mm
Track gauge				895	mm
Fuel tank capacity				10	L
Hydraulic oil tank capacity				13	L
Flow rate of pump				24	L/min

---
