Portable High Efficiency Internal Pneumatic Flange Facing Machine

Product Description

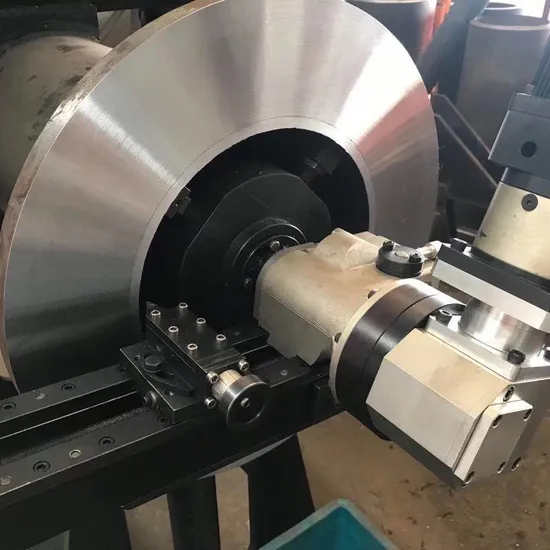

Portable ID Mounted Pneumatic Flange Facer Machine
Modular structure, easy to install, stable machining.
Production Description

Flange, or flange plate, which means the symmetrical plate structure used to connect pipes,
vessels or fixed shaft mechanical parts, usually with bolt and thread structure for fixation.
The Portable Flange Facer Machine is a kind of machining machine, which can repair the flange surface,
prolong the service life of the machine and reduce the industrial cost.

Model	610	1000	1650	2000	3000
Facing Range (O.D)mm	50-610	153-1000	500-1650	762-2000	1150-3000
Mounting Range (I.D)mm	50-508	145-813	500-1500	604-1830	1120-2800
Tool Feed Stroke mm	50	102	102	102	102
Tool holder Swivel Angle	+-30°	+-30°	+-30°	+-360°	+-360°
Rotation Speed r/min	0-42	0-33	0-22	0-20	3-12

• Exceedingly versatile
• Highly portable
• Latest linear technology
• High efficiency
• Low noise level 2.0hp drive
• Storage/shipping box
• CE certificate



Why chooes us?
1.Rich experience and reliable quality WELLNIT has a history of more than 20 years since its establishment. It has accumulated rich product experience, established excellent R & D and quality control teams. With excellent quality and good service, our customers have now spread over more than 50 countries and regions around the world.
2.High cost performance
The lowest price is not our goal. Providing cost-effective products and satisfactory services is the sincere return to customers. We will earn a little less than our competitor, and let our customers benefit a little! Help customers to reduce costs and provide more product and market support!

3.Perfect service system Product service diversification, efficient sales team to provide you with detailed pre-sales consulting; professional technical team to provide you with the best solution to solve technical problems quickly. Our company has established long-term and stable cooperation with many famous logistics enterprises, and will provide you with fast, safe and comfortable logistics services.
