| Negotiable | 1 Set (MOQ) |
| Feature |
| 16mm (5/8'') max. chuck capacity. 510mm swing. 2 spindle speeds. Optional chuck guard and micro switch for CE requirement. |

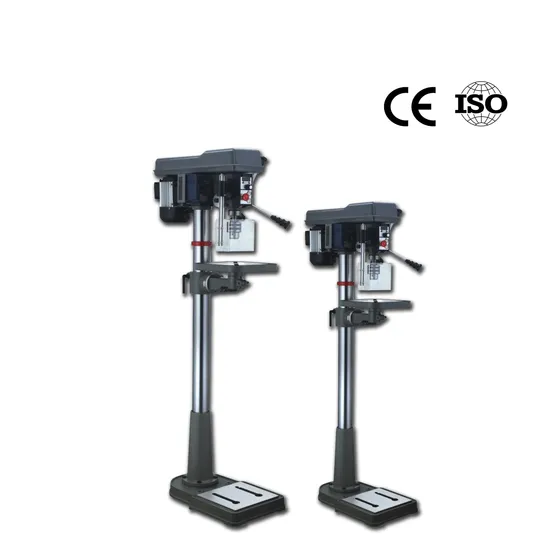

| Model | DP51020F-VS |
| Drill capacity | 32mm |
| Chuck capacity | 16mm |
| Swing | 510mm |
| Distance from spindle to column | 255mm |
| Spindle taper | MT3 |
| Speed (50Hz) | 2 (0-700/0-3000rpm) |
| Spindle travel | 120mm |
| Column diameter | 92mm |
| Max. distance from spindle to table | 680mm |
| Max. distance from spindle to base | 1170mm |
| Base size | 575x450mm |
| Table size | 475x425mm |
| Table tilt | Yes -45/+45° |
| CE chuck guard | Yes |
| LED light | Yes |
| Laser light | Yes |
| Converter (vector control) | Yes |
| Motor (w)/S1 | 1500W |
| Height | 1690mm |
| N.W./G.W. | 122/127kg |
| Packing size | 1450x655x390mm |
| Quantity for 20GP | 72pcs |
| Standard Accessories | Optional Accessories |
| Drill chuck | Copper motor |
| Wrench set | Chuck guard |
| Aluminium motor | Emergency stop |
| Keyless drill chuck | |
| Vice |
