High-Accuracy Vertical Drilling Machine for Bench and Tabletop Use

Product Description

Product Description

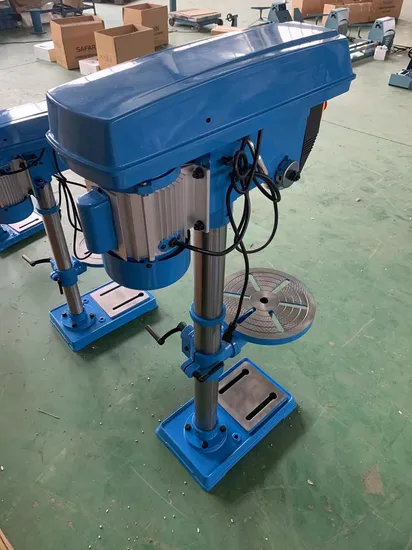

HY5213B Micro Bench Drill Press Machine HY5213B Micro Bench Drill Press Machine Company: Shanghai Hystrong Industrial Co., Ltd.
High Rigid Construction: Ensures exceptional stability and unmatched precision during all drilling operations. Easy Operation and Extended Durability: Designed for user-friendly operation, ensuring consistent, long-lasting performance. Considerable Safety Design: Features an optional chuck guard and micro-switch for enhanced operator safety. Chuck Capacity: 1/2" (13mm) Swing: 260mm Table Tilt: -45 degrees ~ 0 degrees ~ +45 degrees (Left & Right) Spindle Speeds: 5 adjustable speeds for versatile drilling tasks
Technical Data

Model	HY5213B
Drilling Capacity	13 mm
Swing	260 mm
Spindle Taper	B16
Spindle Travel	65 mm
Spindle Speed Steps	5 Steps
Spindle Spped	620 - 2,620 / 740 - 3,140 rpm
Maximumn Distance from Spindle Axis to Surface of Column	130 mm
Maximumn Distance from Spindle End to Surface of Worktable	260 mm
Maximumn Distance from Spindle End to Surface of Base	370 mm
Column Diameter	58 mm
Height	680 mm
Worktable Size	190 x 190 mm
Base Size	340 x 120 mm
Motor Power	250 /375w
Net / Gross Wieght	27 / 29kg
Packing Size	570 x 410 x 265 mm

Accessories
Packaging & Shipping

Package	1 set/polywood case (aluminum strips strengthen)
Minimum Order Quantity (MOQ)	1 set
Full Container Loading Quantity (FCL)	450 sets/20'GP (unitary; customerized packing available)
Delivery Time	20 calendar days after receiving of advance / full payment

Company Information
Shanghai Hystrong Industrial Co., Ltd. With over twenty years of experience in manufacturing and exporting high-quality machines and tools, Shanghai Hystrong Industrial Co., Ltd. has built a strong reputation for excellence and top-notch after-sales service worldwide.
Our industrial tools are crafted from carefully selected raw materials using advanced manufacturing equipment to ensure superior quality. We understand the importance of consistently delivering high-quality products to support the success of your operations. With our deep expertise in various applications, we can customize tools to meet even the most demanding requirements.
Certifications
FAQ
Product Description Welcome to Shanghai Hystrong Industrial Co., Ltd. Here are some key details about our products:
Payment Terms: Our payment term is 30% T/T in advance, 70% T/T before shipment. This term is negotiable. Delivery Time: Typically, a single machine takes 20-40 days. If in stock, shipment can be arranged immediately upon payment receipt. Factory Location: Our factory is located in Yancheng, Jiangsu Province. We welcome you to visit and learn about the machine operation. CE Certification: Yes, we have CE certification, ensuring the highest quality standards for our machines. OEM Orders: We accept OEM orders with your logo on the machine and custom-designed packaging. For more information, please contact us at Shanghai Hystrong Industrial Co., Ltd.

---
