US$85,000.00-125,000.00
|
1 Piece
(MOQ)
|
Basic Info.
Making Method of Parison
Extrusion-Blow Molding
Computerized
Computerized
Certification
CE, ISO9001:2008
Output(Dry Cycle)
300 PC/Hr
Die Head Option
Accumulator Head
Transparent Line
Available
Production Usage
Toys, Auto Parts, Drum, etc
Transport Package
Film Packing with Wooden Bottom
Specification
Max capacity 500L
Product Description
PXB120A

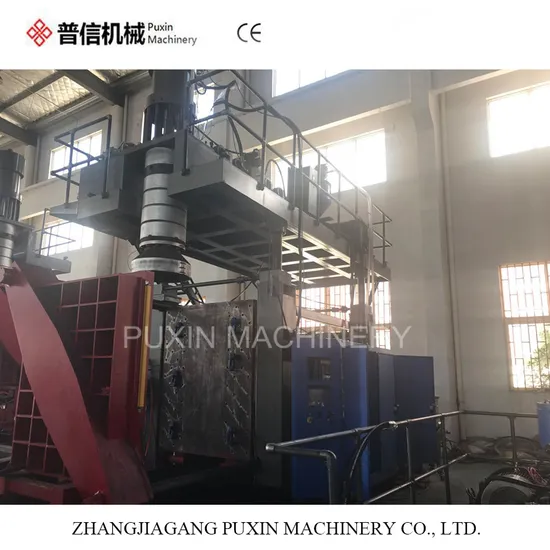

500L Blow Molding Machine
- Fixed open-closing and accumulator die head adopts oblique arm double drawbar synchronous clamping mechanism.
- Large space for mold, clamping stable, durable mode platen, mold clamping by oil cylinder pressure directly.
- Perfect Usage for LARGE TOY, ROAD BARRIER, WATER TANK, PALLET, etc.
- High efficiency mixing screw mechanism for HMWHDPE on extruder unit.
- Optional Inceasing Accumulator head capacity to MAX60L
Configuration List
| PLC | MITSUBISHI | Japan |
| Touch Screen | WEINVIEW | Taiwan |
| D.C Driver | Eurotherm | U.K |
| Power Supply | MEAN WELL | Taiwan |
| Relay | OMRON | Japan |
| Hydraulic Valves | YUKEN | Japan |
| Hydraulic Pump | YUKEN | Japan |
| Contactors | LS(LG) | Korea |
| Solid relay | FOTEK | Japan |
| Breaker | LS(LG) | Korea |
| Temperature Control Module | MITSUBISHI | Japan |
| Oil Sealing | DZ | Taiwan |
| Oil Tube | LIEBAO | Taiwan |
| Transducer | GEFRAN | Italy |
| Proximity Switch | KINGTON | Taiwan |
| D.C Motor | XIMA | China |
| Air Valve | FESTO | Germany |
| Parison Controller | Moog | Japan |
| Servo Valve | Moog | Japan |
Parameters:
| Material | | PE,PP,ABS... |
| Max container capacity | L | 500 |
| Output(dry cycle) | pc/hr | 300 |
| Machine dimension(L×W×H) | M | 9.0×4.0×6.5 |
| Machine weight | T | 36 |
| Clamping Unit | | |
| Clamping force | kn | 1000-1500 |
| Mold platen size(W×H) | mm | 1400×1750 |
| Platen opening stroke | mm | 600-1600 |
| Platen moving stroke | mm | 1000 |
| Max mold size(W×H) | mm | 1200×2200 |
| Mold thickness | mm | 610-750 |
| Power | | |
| Servo oil pump motor power | KW | 35 |
| Servo pump displacement | L/MIN | 200 |
| Blow pressure | MPA | 1 |
| Air consumption | M3/MIN | 2 |
| Cooling water pressure | mpa | 0.5 |
| Water consumption | L/min | 100 |
| Average energy consumption | KW | 85-100 |
| Extruder unit | | |
| Screw diameter | mm | 120 |
| Screw L/D ratio | L/D | 25 |
| HDPE Melting capacit for HDPE | kg/hr | 300-380 |
| Number of heating zone | zone | 6 |
| Screw heating power | kw | 39 |
| Screw fan power | KW | 0.6 |
| Extruder motor power | kw | 90(110) |
| Die head | | |
| Number of heating zone for single die head | zone | 6 |
| Heating power for single die head | kw | 39 |
| Max die-pin diameter | mm | 650 |
| Accumulator capacity | L | 25(30) |
| (HDPE) Accumulator weight(HDPE) | KG | 18(22) |
