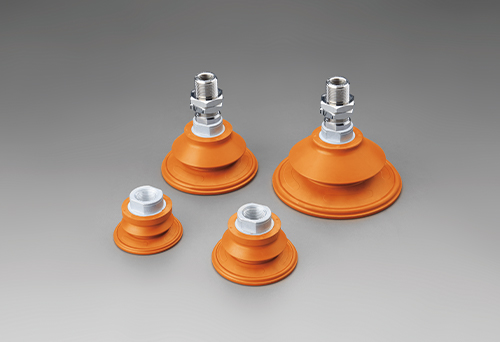

Vacuum suction cup Bellows suction cup VPA Series

Product Details

Product Description

Product Description
– 1.5 fold round corrugated suction cup for high dynamic handling of high-temperature metal sheets up to 250 ℃;
-Handling pre-formed sheet metal parts with a corrugated shape for optimum adaptability;
-Unloading after forming the part;
-Carrying thin aluminum without deformation and deep drawing
1.5 fold corrugated-Suction cup bracket unbuffered

Dimensional chart
Order code					Parameter
①	②	③	④	⑤	A	B	C	Model
Suction cup bracket type	Suction cup code	Suction cup type	Material	Takeover method
VPA	30	VBF	N S PU	6J B01	32	30	59	VPA 30 VBF ④ ⑤
	40				41	31	60	VPA 40 VBF ④ ⑤
	50				51	39	68	VPA 50 VBF ④ ⑤
	60				61	43	72	VPA 60 VBF ④ ⑤
	80				–	–	–	–
	100				–	–	–	–

Dimensional chart Optional quick connector
Quick connection specification	Pipe diameter	A	B
POC6-M5C	Ø6	M5	14
POC6-01		G1/8	12
POC4-M5C	Ø4	M5	14

1.5 fold corrugated-Suction cup bracket with cushion type (upright)

Dimensional chart
Order code							Parameter
①	②	③	④	⑤	⑥	⑦	A	B	C	D	E	Model
Suction cup bracket type	Suction cup code	Buffer stroke	Suction cup type	Material	Swing method	Takeover method
VPT	30	10	VBF	PU N	J K	6J B01	32	30	95	10	35	VPT 30-10 VBF ⑤⑥⑦
		20							105	20	35	VPT 30-20 VBF ⑤⑥⑦
		30							128	30	48	VPT 30-30 VBF ⑤⑥⑦
		50							166	50	66	VPT 30-50 VBF ⑤⑥⑦
	40	10					41	31	96	10	35	VPT 40-10 VBF ⑤⑥⑦
		20							106	20	35	VPT 40-20 VBF ⑤⑥⑦
		30							129	30	48	VPT 40-30 VBF ⑤⑥⑦
		50							167	50	66	VPT 40-50 VBF ⑤⑥⑦
	50	10					51	39	104	10	35	VPT 50-10 VBF ⑤⑥⑦
		20							114	20	35	VPT 50-20 VBF ⑤⑥⑦
		30							137	30	48	VPT 50-30 VBF ⑤⑥⑦
		50							175	50	66	VPT 50-50 VBF ⑤⑥⑦
	60	10					61	43	108	10	35	VPT 60-10 VBF ⑤⑥⑦
		20							118	20	35	VPT 60-20 VBF ⑤⑥⑦
		30							141	30	48	VPT 60-30 VBF ⑤⑥⑦
		50							179	50	66	VPT 60-50 VBF ⑤⑥⑦
	80	30					81	50	170	27	68	VPT 80-50 VBF ⑤⑥⑦
	100	30					101	57	177	27	68	VPT 100-50 VBF ⑤⑥⑦

Dimensional chart Optional quick connector
Quick connection specification	Pipe diameter	A	B
POC6-M5C	Ø6	M5	14
POC6-01		G1/8	12
POC4-M5C	Ø4	M5	14

1.5 fold corrugated-Fixed connector type

Dimensional chart (external thread)
Order code				Parameter
①	②	③	④	A	B	C	D	E	Model
Suction cup bracket type	Suction cup code	Material	Fixed joint
VBF	30	PU N	18M 38M	32	21	36.5	9	6.5	VBF30PU – 18M
	40			41	22	37.5			VBF40PU – 18M
	50			51	27	47	12	9	VBF50PU – 18M
	60			61	31	51			VBF60PU – 18M
	80			81	40	60			VBF80PU – 38M
	100			101	47	67			VBF100PU – 38M

Dimensional chart (internal thread)
Order code				Parameter
①	②	③	④	A	B	C	D	E	Model
Suction cup bracket type	Suction cup code	Material	Fixed joint
VBF	30	PU N	18F 38F	32	21	28	7	9	VBF30PU – ④
	40			41	22	29			VBF40PU – ④
	50			51	27	37	10	12	VBF50PU – ④
	60			61	31	41			VBF60PU – ④
	80		38F	81	40	50			VBF80PU – 38F
	100			101	47	57			VBF100PU – 38F

---
