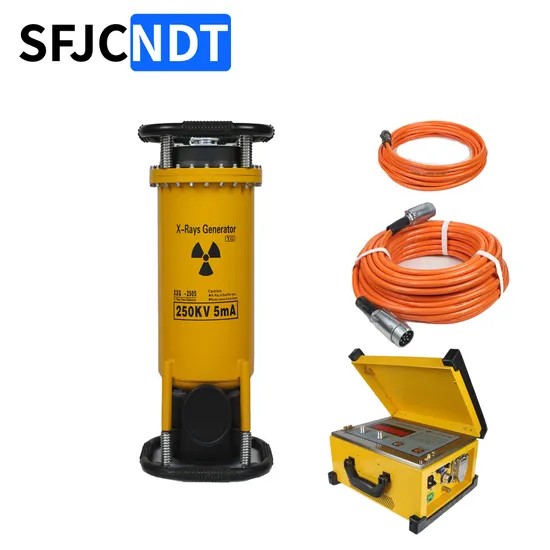

Super Small Size 300kv X Ray Generator Portable NDT X Ray Machine Industrial Equipment

Product Description

300KV Smaller Flaw detector
XXG3005CL is a directional corrugated ceramic X-ray tube flaw detector:
Maximum output voltage 300KV,
Maximum tube current 5 MA,
Focus size: 2.5*2.5 mm,
Focal length is 600 mm, 5 minutes through 50 mm A3 steel, blackness is not less than 1.5, sensitivity is better than 1.5%, 1:1 work and rest, forced air cooling.
Equipment Packing List (standard)
1. X-ray generator
2. One controller
3. Each YR3*2.5 power cable is 10m
4. Control cable YR 3*2.5+6*1, each 25m
5. Fuse 20A five pieces 6*30
6. Each ground cable is 5 meters
7. A copy of product specification
8. The product comes in three packages
9. One certificate of qualification

SPECIFICATIONS

Model

Type

Output Voltage (KV)

Power Capacity (KVA)

Focus size (mm*mm)

Radiation Coverage (∘)

Max. Penetration (A3)

Output current

Cooling

Generator Size (mm)

Controller Size (mm)

Generator Weight (kg)

Controller Weight (kg)

XXG2505CL

Super Small

130~250

2.5

2.0*2.0

40+5

40

5mA

Air cooling

230*230*600

325*275*190

18

9

XXGH2505CLZ

Super Small

130~250

2.5

1.0*3.5

360*30

32

5mA

Air cooling

230*230*600

325*275*190

20

9

XXG3005CL

Super Small

150~300

3.0

2.5*2.5

40+5

50

5mA

Air cooling

280*280*610

325*275*190

25

9

XXGH3005CLZ

Super Small

150~300

3.0

1.0*5.0

360*30

42

5mA

Air cooling

260*260*680

325*275*190

25

9
