DVB-T 8 Route Modulator

Product Description

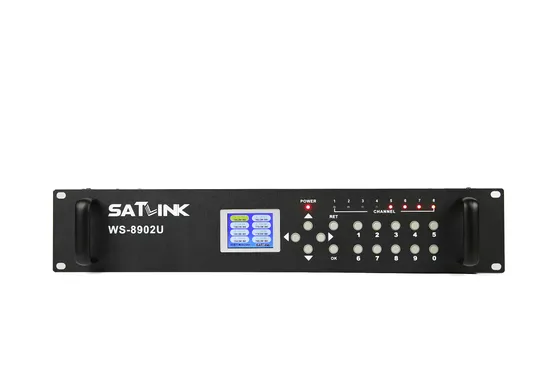

ST-8902U DVB-T modulator is well designed to multiplex video signals from 8 different signals into 8 channels RF out. ST-8902U is a compact and convenient device used for home/hotel entertainment, surveillance contiol, digital sinage, multi-dwelling unit, commercial business complex....etc., in which video broadcasting with multiple signal sources is required.

FEATURES
High level of integration, high-performance, full-featured, integrated design
8 route input modulator that converts AV/HD source to a DVB-T channel
Standard COFDM modulation and H.264 encoding
Multiple video format compatibility including 576i(PAL) / 480i(NTSC) / 1080p
Bandwidth: 6/7/8MHz
Frequency range: 50~860MHz
Continuously adjustable RF signal output level range 70dBuV from 100dBuV,
step 1dBuV
2.4-inch color LCD display
Small size and light weight
Carriers 2K and 8K
User friendly setup and control
Upgrade by PC

TECHNICAL SPECIFICATION

Modulator	Standard	DVB-T
	Constellation	QPSK / 16QAM / 64QAM
	Bandwidth	6 / 7 / 8 MHz
	Carriers	2K / 8K
	Guard Interval	1/4, 1/8, 1/16, 1/32
	Code Rate	1/2, 2/3, 3/4, 5/6, 7/8
	MER	35 dB
	Frequency Range	50 ~ 860 MHz
	Output Level	70 ~ 100 dBuV
	Output Impedance	75Ω
Video	Input Format	CVBS/HD
	Encoding Format	H.264
	Video Resolution	576i PAL / 480i NTSC/1080p
	Connector	RCA/HD 1.3
Audio	Input Format	Stereo L/R channel
	Encoding Format	MPEG-1 Audio Layer II
	Connector	RCA
General	Power Source	AC 100~240V
	Operating Temperature	0 ~ +50°C
	Dimensions	480mm(L) × 340mm(W) × 90mm(H)
	Weight	4.16Kg

---
