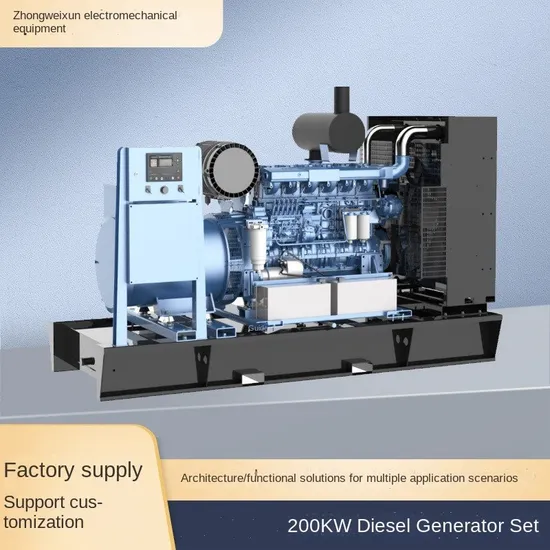

Quality Assurance 200kw Weichai Power Diesel Generator Set Spot Quick Launch Weichai Diesel Generator Set

Product Description

Gen-set specifications
Model	ZWX-GF-200
Standby Rating kVA/kWe	275/220
Prime Rating kVA/kWe	250/200
Voltage V	400
Frequency Hz	50
Power Factor	0.8(lagging)
No. of Phases	3
Fuel consumption@25%/ 50% / 75%(L/h)75%(L/h)	15.69/ 27.04 / 39.27
Fuel consumption@100% / 110%(L/h)	52.18 / 57.45
Sound@1m(dB·(A))	Open ≤ 105; Silence ≤ 85
Ambient temp(ºC)	-5~40
Gen-set regulation class	ISO8528-5 G2
Steady-state voltage deviation	≤±2.5%
Transient voltage deviation (100%sudden power decrease/increase)	≤+25% ;≤-20%
Steady-state frequency band	≤1.5%
Gen-set regulation class	≤+12%;≤-10%

Engine specifications
Make	WEICHAI
Mode	WP10D264E200
Rated Speed r/min	1500
Prime Power kW	240
Cooling	Liquid cooled
Governor	Electronic governor
Aspiration	TA
No. of cylinders	6, in-line
Bore (mm) x Stroke (mm)	126x130
Displacement (L)	9.726
Starting system	24VDC
Total lubrication system capacity (L)	30
Total coolant capacity (L)	42
Cooling fan airflow(m³/min)	415
Exhaust Temperature (°C)	≤600
Combustion air flow @ PRP (m³/min)	16.8
Exhaust back pressure (mBar)	≤60
Radiator design temperature(ºC)	45

Zhengzhou Zhongwei Xun Electromechanical Equipment Co., Ltd., referred to as 'Zhengzhou Zhongwei Xun,' is a high-tech enterprise specializing in the development, design, production, and sales of intelligent and environmentally friendly power supply equipment. With the development strategy of 'China Power, Serving the World,' the company aims to become the largest modern high-end diesel power equipment maintenance and repair center in the Central Plains region of China, covering an area of 1000 square meters. The company provides pre-sales and after-sales services such as technical consultation, training, installation, and maintenance for exclusive equipment. It has obtained ISO9001 quality system certification and received unanimous praise from customers at home and abroad for its products. The main products include diesel generator sets, engine accessories, engine filters, lubricants, antifreeze, etc. Power Systems: Weichai engines for construction machinery and industrial applications (power generation, mud pumps, high-pressure cleaning pumps, lifting pumps, crushers, well repair machines, core drilling machines, etc.) with non-road Stage III and Stage IV emissions. New Energy Power Systems: Hydrogen power, plug-in special power, pure electric battery power, new energy motors, electronic controls, etc.pls feel free to contact us, welcome to visit our company!

---
