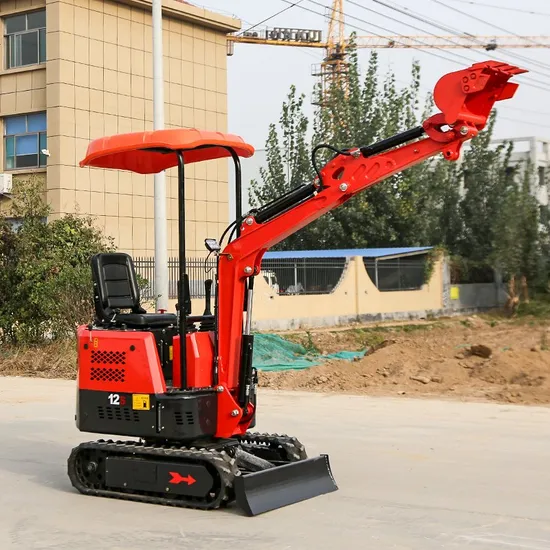

Chinese Mini Excavator Small Mini Excavator 1ton Excavator SD12-8 Garden Mini Digger for Sale

Product Description

"A highly efficient little excavator."
If you have a tough job and 800mm or less access, this is the machine you need.
Excavate footings, remove tree stumps, install modular drainage, lift blocks, auger post holes, excavate pools, backfill retaining walls, remove / install fencing, break concrete and remove spoil when combined with the mini dumper.
Great for restricted access excavation, demolition, cleanups, construction work and landscaping.
SD12S IS A REAL MINI EXCAVATOT.ITS WEIGHT IS 1000KG,ITS WIDTH IS ONLY 925MM,ITS HEIGHT IS 1000MM (NOT INCLUDING ROOF).BUT IT IS A REAL EXCAVATOR,NOT KIDS TOY!IT IS MADE UNDER THE STANDARD OF THE EXCAVATORS.IT CAN DO ALL THE GARDEN WORKS WITH OPTIONAL ATTACHMENTS.
This Mini Excavator delivers power and performance in a compact size to help you work in the tightest applications. Its ability to fit through a narrow doorway makes it an excellent machine for indoor demolition work.
This Mini Excavator delivers power and performance in a compact size to help you work in the tightest applications. Compact (mini) excavator delivers impressive performance in tight areas with minimal repositioning. Hydraulically retract the undercarriage to only 830MM to travel through gates or between homes, then expand to 1130MM. for a wider footprint and greater performance. Zero tail swing gives you better maneuverability on the most restricted jobsite. Choose an excavator with the ideal combination of horsepower, dig depth, arm configuration and tail swing style for your work. Add specialized attachments that do more than dig, and maximize productivity on every project you can take on, no matter how big or small.

Machine parameters
Model	SD12S
Operating Weight	1000Kg
Bucket Capacity	0.028m³
Rated Power	8.6 kw
Max.Hydraulic System Pressure	16mpa
Max. Grade ability	30°
Max. Ground Pressure	18.9N/m²
Max Walking Speed	2.1Km/h
Max. Traction	9.2KN
Platform Rotary Speed	9-11r/min
Overall Length	2770mm
Overall Width	925mm
Overall Height	1550mm/2100(Chair/Roof)
Arm Length	800mm
Boom Length	1490mm
Track Length	1210mm
Track Width	180mm
Ground Clearance	240mm
Platform Width	920mm
Platform Ground Clearance	420mm
Bucket Width	370mm
Max. Digging Height	2650mm
Max Digging Depth	1650mm
Max. Digging Radius	2950mm
Max Dumping Height	1750mm
Min. Radius of Gyration	1150mm
Radius of Tail Gyration	680mm
Max. Sinking Depth of Bulldozer	230mm
Max. Lifting Depth of Bulldozer	210mm
Engine Model	KOOP 192F /Changchai
Main valve	TIANJI
Main Pump	Shimadzu
Rotation Motor	SANYO
Walking Motor	SANYO
Boom swing	optional
