Product Details
Product Description
Product Description

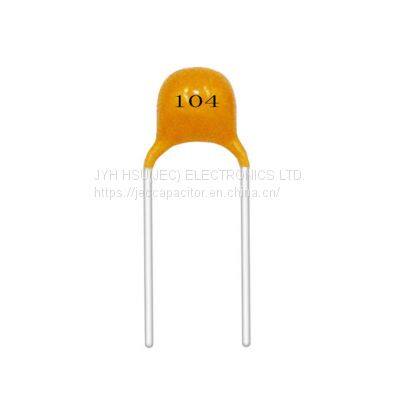

Ceramic Capacitor 104 capacitor manufacturers super high voltage ceramic capacitor for sale
JEC Ceramic Capacitor 104 Features:
Multiple temperature levels, low loss and high capacity stability
Electrical characteristics:
Ceramic Capacitor 104 Electrical Characteristics:
Technical requirements reference Standard
| GB/T 2693-2001 ; GB/T 5966-1996
|
Rated Voltage(UR)
| 500 / 1K / 2K / 3K / 4K / 5K / 6K / 7K / 8K / 9K / 10K / 15K / 20K / 25K / 30K / 40K /50K VDC
|
Capacitance Range
| 1pF to 100000pF
|
Withstand Voltage
|
|
Capacitance Tolerance
| NPO±0.5pF(D)±5%(J) ; SL±5%(J)±10%(K),Y5P,Y5U±10%(K ) ; Y5U,Y5V±20%(M)
|
Dissipation Factor (tgδ)
| C<30pF,Q≥400+20C ; C≥30pF,Q≥1000 ,Y5P,Y5U,Y5V:tgδ≤2.0% ; Y5P:tgδ≤0.5% ; Y5R:tgδ≤0.3%
|
Insulation Resistance(IR)
| IR≥10000MΩ,1min,100VDC，IR≥4000MΩ,1min,100VDC
|
Operating Temperature Range
| -25℃ to +85℃
|
Temperature Characteristic
| NPO,SL,Y5P,Y5U,Y5V
|
Flame Retardant Epoxy Resin
| UL94-V0
|
At present, JYH HSU ELECTRONICS LTD. mainly produces and sells a full range of low, medium and high voltage ceramic capacitors, and capacitors of suppresses electromagnetic interference (Y1, Y2, X2 type) of power supply Metalized film capacitors (CL11, CL23, CL23B, CL21X, CL21, CBB81, CBB21, CBB13)and Varistor (surge absorber), etc. X capacitors and Y capacitors annual production capacity of more than 3 billion, ranked top ten in the industry.
The company has passed ISO 9001 quality management system certification, and ISO 14001 environmental system certification, X2, Y1 and Y2 capacitors and varistors has passed Chinese CQC, German VDE, American / Canadian CUL, South Korea KC, EU ENEC, the International Electrotechnical Commission CB product safety certification, all the capacitors are in line with the EU ROHS environmental directive and REACH regulations.
JYH HSU ELECTRONICS LTD. based on "quality first, customer first, and sustainable management" business philosophy. Under the quality policy of "full participation, pursuing zero defects and ensuring product safety". All my colleagues continue to upgrade their technology, products and services, with professional power supply, household appliances, security, communication, motor, inverter, automotive electronics and other electronic equipment application field, realize the ceramic capacitors, film capacitors, and varistors a professional "one-stop" services, to pursuit of the perfect collocation with customers.
JEC Multilayer Ceramic Capacitor has advantages such as low loss and high capacity stability, which is apply to bypass or coupling circuit.
https://www.jeccapacitor.com/ceramic-capacitor/multilayer-ceramic-capacitors-104.html
>>
