Germany Quality HMD with CE Certification
1. General Description

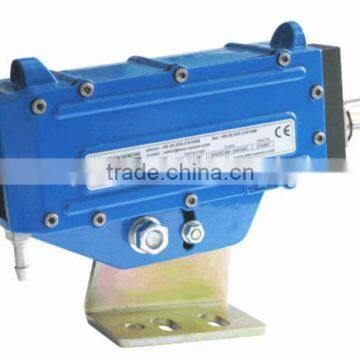

The MSE-HMD85 Hot Metal Detector is a fully digital “All-in–One” Hot Metal Detector uniquely incorporating a bar display showing the % IR input signal relative to the pre-set threshold as well as programmable thresholds and response times via simple programming switch action. This and the universal connection format means it provides the user with one universal Detector that can be used throughout the mill. The MSE-HMD85 Hot Metal Detector is the economical choice. Now there is no need to stock various Detectors for each location. Costly multiple inventory can be replaced by one Detector.
The MSE-HMD85 Hot Metal Detector is a robust sensor activated by the infra-red radiating from the hot product. Impervious to water or steam it is built to withstand the harshest of environments. The product is detected via a highly stable InGaAs Photodiode to ensure detection regardless of heavy water and steam and incorporates filtering that removes the visible spectrum to minimize sensitivity to extraneous light. The precise 0.5° x 25° lens ensures accurate detection of strip and accommodates bar bounce.
2. Rear Bar Display
The rear bar display allows the user to clearly establish the amount of received IR both from the background metalwork and the bar being
detected and thereby establishing the correct trip level required. This display also allows the user to align the Detector from a low energy
source such as a flashlight, which normally would be insufficient to switch the Detector. Adjustment of both the threshold and the response time is also clearly defined by this bar.
3. Housing Specifications
Housing: Aluminum AL6, Oven baked blue paint
Housing Rating: IEC IP66, DIN, 89011
Weight w/o Cable: 1.9 Kg (4.2lb)
Connector: IP66 with connected Plug/Socket
Cable Length: 1.5 M Standard up to 15 M available
Cooling: Air Cooled & Air Purged or Water Cooled & Air Purged
4. General Specification

Lens F.O.V. (Filed of View)	0.5° x 25° Rectangular Slit
Sensing Element	InGaAs Sensor
Power Indication	Blue LED
Function Indication	Top & Bottom Yellow LED's
Remote Self-Check	Middle Yellow LED's
Min/Max I.R. Threshold Settings	Adjustable from 270°C via Programming Switch
Response Time	1 ms to 250 ms, via Programming Switch
Supply Voltage	Standard: 80 - 240 VAC, 50/60 or 24 VDC ± 10%
Power Consumption	5 W
Operating Temperature	1. -20°C to +50°C without Air Cooling 2. -20°C to +60°C with Air Cooling 3. +2°C to +70°C with 20°C Water Cooling 4. up to 80°C with Heat Shield
