Mc High Pressure Micro Multifunctional Reactor

Product Description

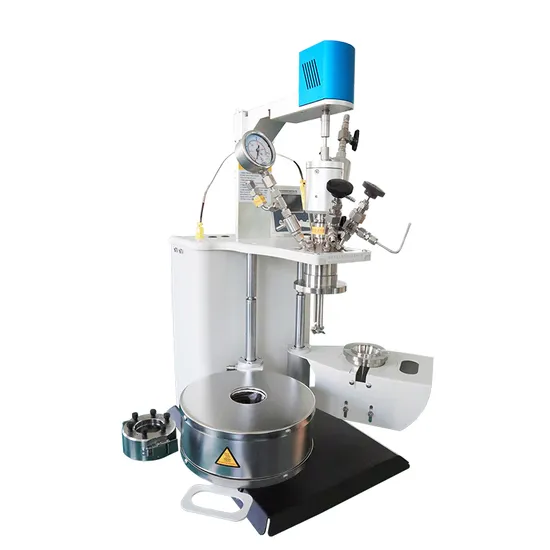

The MULTICHEM series fixed head multifunctional reactor is a versatile multi-functional reactor with a vertical control system and independent design of heating system displacement. The fixed head of the reactor does not disassemble the pipeline with the reactor body, making it easy to operate. The whole machine is integrated, ergonomically designed, and the structural function distribution conforms to ergonomics. The functions are complete and complete, with a full Chinese operation menu, a direct connected magnetic coupling mechanical stirring, a push type four blade mold propeller, a manual lifting heating furnace with positioning function, and the reactor tray is manually lifted and equipped with positioning system. The control system is vertical and located on the right side of the base, eliminating the accidental leakage of low boiling gas vapors or flammable gases and the danger of motor circuits. It is a conventional reaction equipment for laboratory high-pressure reactions and has a high market share.
The Senlang multifunctional reactor has a wide range of applications in catalysis, polymerization, decomposition, hydrothermal treatment, hydrogenation, supercritical, pharmaceutical, and material dispersion, and is a fundamental high-pressure reaction equipment in the laboratory.
Fixed head multifunctional reactor, made of 316L stainless steel material, model MC-500, standard technical specifications include:
A. Desktop, fixed reactor head, 180 degree mobile heating system, manual lifting with positioning system, and manual lifting system for the reactor body
B. Effective volume of kettle: 500ml, full volume ≥ 500ml
C. The kettle cover, kettle body material, and internal components are all made of 316L stainless steel material
D. Mixing driver, material: 316L stainless steel
E. Composite high-temperature sealing gasket, quick opening snap ring sealing structure, A-type dual line sealing
F. Working pressure/temperature: 10Mpa, 350 ºC
G. The kettle cover is equipped with:
1. 0-16Mpa dual range pressure gauge and 12.5Mpa safety explosion-proof valve
2. 316L stainless steel thermocouple sleeve and K-type thermocouple, used for reaction temperature measurement
3. Liquid sampling valve (gas sampling valve) made of 316L material, connected to the 316L material bottom tube, used for intake, liquid inlet, and pressurized liquid material retrieval
4. Gas release valve made of 316L material, used to empty the gas inside the reactor and release pressure
5. Magnetic coupling driven agitator, with shaft and stirring blade, mold driven blade type, 316L stainless steel material
6. Built in cooling water coil, 316L material (non mandatory configuration)
H. Magnetic coupling mechanical stirring: stepless speed regulation, speed 0-1200 rpm
I. Mixing speed control and PID program temperature controller
J. Heating furnace, fixed module electric heating, heating power 1.2KW
L. Speed control and data display module
SLMRSC-MULTICHEM LCD screen control system: mixing speed control and PID program temperature controller, bidirectional communication cable, realizing temperature and speed control, working time, self tuning calibration;
a. Temperature digital display, equipped with ultra-high temperature automatic cut-off heating source, sound and light alarm protection module;
b. Pressure pointer dual range display with ultra-high pressure protection module;
c. Revolution control and data display module;
Timed working time mode: divided into two modes: constant temperature timing and working timing;
e. Multi stage program temperature control function mode;
f. Power configuration: 200-240 V/AC, 50-60 Hz

Series MultiChem Micro-Reactors
Model Number	MultiChem100	MultiChem250	MultiChem500	MultiChem1000
Sizes,ml	100	250	500	1000
Maximum Pressure(WAWP)	10MPa(1500psi)
Maximum Temperature	350ºC
Constant temp Accuracy	±1ºC
Reactor Mounting	Bench Top
Rotation Speed	0-1200rpm
Electrical Supply
Volts,AC	100 or 220V,50Hz
Motor power(W)	70	70	150	150
Reactor Dimensions
Width,mm	490
Height,mm	400
Depth,mm	580
Materials of Construction	316L Stainless Steel,Alloy TA2,Alloy C-276. Nickel Alloy,Zirconium materials
Other options available,Please call for more information.

---
