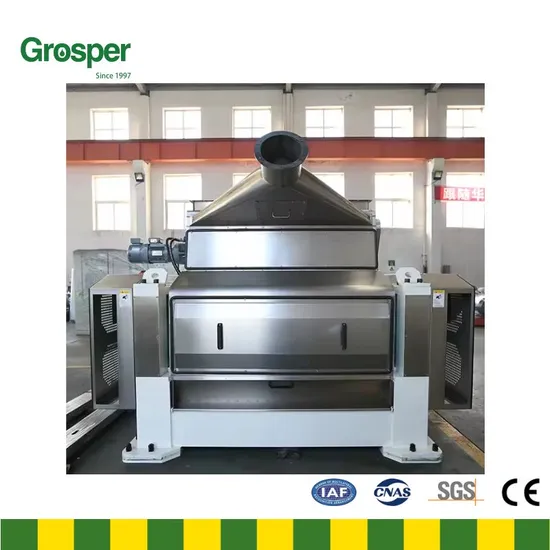

Corn Flaking Mill Machine Flaker Grosper Flaking Mill FC7150f Large Production

Product Description

Type	Model	Capacity(T/D)	Flake thickness(mm)	Roller size(mm)	Power(kw)	Dimensions (mm)	Weight(T)
Corn flaking mill	FC7175SF	240	1.2-2	711*1750	110/132*1+2.2+1.1	3200*2500*1900	16.7
	FC7150SF	200	1.2-2	711*1500	110*1+2.2+1.1	3000*2500*1900	15.5
	FC7150F	200	1.2-2	711*1500	55*2+2.2+1.1	2700*2500*1800	15
	FC6150F	160	1.2-2	600*1500	37*2+2.2+1.1	2600*2200*1750	8.5
	FC6125F	120	1.2-2	600*1250	30*2+2.2+1.1	2300*2100*1650	6.5
	FC6100F	70	1.2-2	600*1000	22*2+2.2+1.1	2000*2100*1650	6.1
	FC6060F	50	1.2-2	600*600	15*2+2.2+1.1	1500*2100*1530	4.2
	FC4150F	100	1.2-2	400*1500	22*2+2.2+1.1	2350+1240+1870	4
	FC4080F	50	1.2-2	400*800	15*2+2.2+0.75	1550*1240*1870	3

FC7150SF
1: FC series corn flaking machine is one of the main equipment for producing steam corn flakes. The layout of this series of corn flakers is reasonable and compact, reducing the space.
2: The whole machine adopts fully enclosed, stainless steel structure.
3: We use China's first heavy roll blank which are poured by a centrifuge imported from Germany, processed by Grosper independently, and has passed a strict dynamic balance test. The chill of the roller is made by Ni Cr Mo alloy, and the chill depth is 35+/-5mm.
4: The hydraulic system adopts intermittent hydraulic pump station with PLC, which is highly efficient and energy-saving.
5: The thickness of the flakes can be adjusted without stopping the machine. This is our invention patent.
6: The modular design structure reduces the technical difficulty of equipment maintenance and roll replacement.
7: It allows customers to complete the replacement of parts by themselves in a short time.

Technical Parameter of Flaker Model FC7150F
1	Equipment name	Grain Flaker model FC7150F	2	Model	FC7150F
3	Chinese Trade Mark	Liaohai Pearl	4	Abroad Trade Mark	Grosper
5	Capacity(T/D)	200-220	6	Raw material	Corn
7	Roller size(mm)	φ711*1500	8	Chill depth(mm)	30-35mm
9	Roller materials	High Ni Cr Mo alloy	10	Chill hardness (hs)	75±3
11	Flake thickness(mm)	1.2-2	12	Rotatal speed(rpm)	305
13	Total motor power(kW)	93.3(113.3)	14	Drive motor power(kW)	45*2(55*2)
15	Reducer power(kW)	1.1	16	Weight(≈t)	15
17	Dimensions(mm)	2700*2400*2100	18	Bearing type	22336CAK/W33
19	Pulley type	5SPC710-5050-130,5SPC224-3535-75

---
