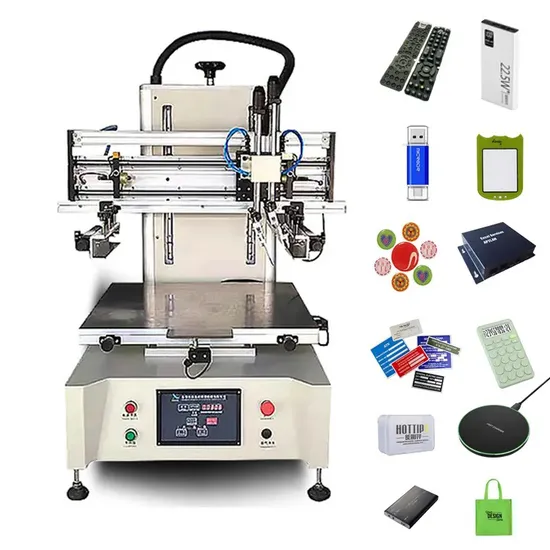

Wholesale Tabletop Flatbed Screen Printing Machine

Product Description

Wholesale Tabletop Flatbed Screen Printing Machine
Technical parameter:

Model	HX-2030C
Print size	200*300mm
Machine speed	600 - 800pcs/hr
Vertical stroke	160mm
Transverse stroke	350mm
Worktable size	250*450mm
Action mode	Automatic | SEMI-automatic | Manual
Start method	panle | pedal
Vertical driven	penumatic
Transverse driven	pneumatic
Power	110/220V, single phase
Air supply	5 - 7 Bar

Machine summary:
The mini flat screen printing machine with vacuum table is adopted vacuumgenerator to bring strong adsorptive power without noise. It replaces manual screen printing, and solves the problems of un-stable printing quality, and slow printing speed by manual screen printing. The machine is small with quick speed, stable function, high precise, it can be made up of screen printing production line in small workshop. It's special suitable for printing logo on the surface of lens, mobile key, paper brick, small plastic products,CD box, gifts etc.
Machine function:
1. SCM IC coordinate light touching panel to compile action programming;
2. Auto 4-digit counters built-in, counting printing quantity;
3. Airframe adopts coin alloy, and metal coating surface;
4. distyle vertical structure, high precision, steady operation;
5. The transverse stroke can be adjusted, spacing by Taiwan electronic switch;
6. The angle of scraper and ink covering blades can be adjusted randomly;
7. Installing scraper constant pressure equipment to make sure pressure is steady when printing;
8. You can regulate work-table back and forth or right and left, and then fastening it;
9. You can regulate screen frame back and forth, right and left or level orientation;
10. Vacuum worktable, no need jig to fix;
11. Installing CEC oil buffer on up and down, left and right to avoid printing shock;
12. The machine is running fast, stably and lower noise;

---
