US$15,468.00-18,520.00
|
1 Set
(MOQ)
|
Basic Info.
Maximum Lifting Height
10-15m
Maximum Lifting Weight
5-7t
Max Lifting Height
12.67m
Max Lifting Capacity
5 tons at 2.5m
Max Oil Flow of Hydraulic System
50 L/ Min
Max Lifting Moment
160kn.M
Outrigger Span
2250-5050mm
Rotation Angle
360 degree all rotation
Application
Construction Usage, Workshop Usage, Container Usag
Transport Package
Nude or Customized
Production Capacity
200 Unit/Units Per Month
Product Description
Hubei Jiaheng Technology Co., Ltd
Hubei Best Crane Co., Ltd
(Truck Crane Professional Manufacturer)
Web: hbjh2013.en.made-in-china.com
Our advantages:
1).Advanced 3D design, reasonably structure, optimal design OF hydraulic pipeline.
2).High Strength Steel, overlength crane arm, "U" shape design, high intensity, light self-weight and better lifting capacity.
3).Latest high-pressure piston motor hoisting mechanics ensure the system stability.
4).Automatic hook and solar powered hoisting limiter. High-precision load Indicator, wireless accelerator make it much safer in different working conditions.

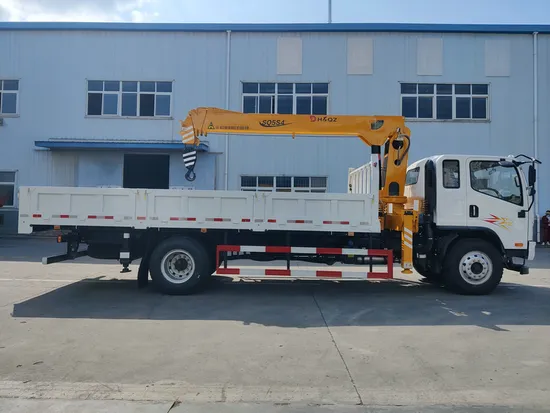

Product show:
Parameters:
| Model # | SQ5S4 / Telescopic boom crane 5 tons at 2.5m |
| Max Liftingmoment | 125Kn.m |
| Max Lifting Capacity | 5000kg/ 2.5m |
| 2400kg/ 4.14m |
| 1200kg/ 6.8m |
| 300kg /12.2m |
| Max Lifting Height | 12.67m |
| Max Working Radius | 12.2m |
| Boom Section | 3 stages(exlude basic boom) |
| Rotation Angle | 360°All Rotaion |
| Rated Working Pressure | 20mpa |
| Oiltank Capacity | 100L |
| Related Oil Flow | 50 L/min |
| Outrigger Span | 2250-5050 |
| Outrigger | 2 ,adjustable, Hydraulic operating. |
| Crane Weight | 2500kg |
| Installation Space | 950mm |
| Swing type | Planetary gear reduction |
| Safety Device | Hydraulic Safety Valve, Counter Balance Valve, Automatic Swing Brake, Hook Safety Device. |
| Material | HG70 |
| Truck for reference |
| Truck brand | Dongfeng (other truck brand can be customized) |
| Cabin | Driving type: 4x2, Left hand drive (Right hand drive type can be customized) |
| Color is optional |
| Vehicle Main Dimensions | Overall size (L x W x H) | 11950x2490x3850mm |
| Wheel base | 5850+1350 mm |
| Cargo Body | 8400*2300*550mm |
| Weight in KGS | GVW | 18000 kg |
| Tare weight | 12380kg |
| Front axle loading capacity | 5000 kg |
| Rear axles loading capacity | 10000 kg |
| Engine | Type | Diesel, 4-stroke direct injection, 6-cylinder in-line with water cooling, turbo-charging and inter-cooling |
| | Horse Power | 180HP (132kw) |
| | Max Torque | 650N.m |
| | Emission standard | Euro V |
| Max Speed | 90 km/h |
| Gearbox | manual gearbox with 8 forwards & 2 reverses, with PTO |
| Tire | 10.00R20, total 7 pieces(including one spare tire) |
Hubei Jiaheng Technology Co., Ltd
Hubei Best Crane Co., Ltd
(Truck Crane Professional Manufacturer)
Web: whbjh2013.en.made-in-china.com
>>
