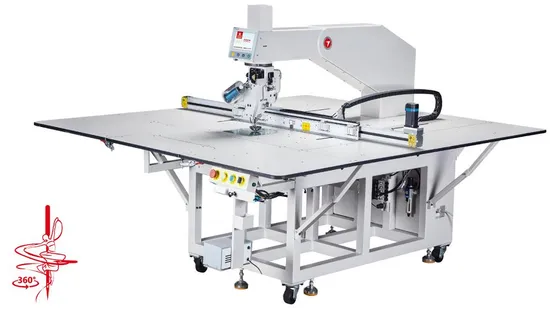

Leather Rotary Sewing Machine for Car Upholstery

Product Description

High speed automatic sewing machine.
Special equipment for automobile seats.
Automation equipment.
Leather sewing equipment.
Intelligent sewing machine
Screw drive for higher accuracy
Intelligent check for disconnection and automatic parking
automatic rollback
Counting function
1. The head and spindle base have 360-degree synchronous rotation sewing function to achieve perfect positive stitch requirements;
2.X, Y axis screw drive, sewing range up to 1200*800mm;
3. Maximum sewing speed 1500 RPM;
4. Needle distance can reach: 0.05-12.7mm;
5. Spinning shuttle standard: 2 times large spinning shuttle;
6. Head oil structure design, needle rod using DLC ultra-resistant surface special treatment;
7. Power off protection function, power off again need to restart, more safe, to prevent the machine in the unmanned state for a long time to start causing fire hazards. The system can quickly move the spindle to the safe position when the power grid is suddenly cut off, so that the needle and spinning shuttle are not damaged.
8. Program input: U disk data import; Transfer read storage. The format identified is.ntp.dxf.plt.dx.ai or converted to a runnable program by the upper level software
9. Wire cutting device: independent AC motor control wire cutting, round knife wire cutting mechanism; Wider application range.

	product name	specifications and models	remarks
1	Single head CNC sewing machine	MFR-S-1.1-900*600	1 piece at a time
2	Double head CNC sewing machine	MFR-S-2.1-900*600	2 piece at a time
3	Single head CNC sewing machine	MFR-S-1.1-1200*800	1 piece at a time
4	Double head CNC sewing machine	MFR-S-2.1-1200*800	2 piece at a time
5	Four head CNC sewing machine	MFR-S-4.1-900*600	4 piece at a time
6	Six head CNC sewing machine	MFR-S-6.1-900*600	6 piece at a time

---
