Product Details
Product Description
Product Description

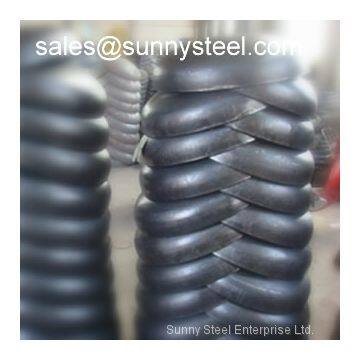

End Cap, Carbon Steel cap, Stainless Steel Caps, Pipe caps
End Cap, Carbon Steel cap, Stainless Steel Caps, ANSI, ISO, JIS and DIN Standards, Measures 1/2 to 56 Inches.
carbon steel butt welded seamless Caps is usually used for protecting the end of pipe and other fittings,so the shape is disigned according to the shape of pipe line.we also use caps to cut off the transition and the connection treat can be butt weld,socket weld and thread conection according to use requirements.
Key Specifications/Special Features:
Standard:
ANSI B16.9 / 16.28, ASTM A53/A106, API 5L, ASME B36.10M---1996, DIN2605 / 2615 / 2616, JIS P2311/2312
Surface treatment:
Transparent oil, rust-proof black oil or hot galvanized.
Special design available All the production process are made according to ISO9001:2000 strictly.
keyword:
cap,Seamless cap,Steel cap,Carbon Steel Seamless cap,pipe cap,cap end
Based on different materials, pipe caps include carbon steel cap, stainless steel cap, and alloy steel cap etc.
Depending on their construction, pipe caps contain threaded cap, tapered cap and anti-roll cap etc.
Common Shapes:
Pipe caps can be in various shapes. Some of the common shapes are hemispherical, oval, square, rectangular, U shape and I shape.
Size
Pipe cap: 1/2-60inch
DN15-DN1500
Wall Thickness:
sch10, sch20, sch30, std, sch40, sch60, xs, sch80, sch100, sch120, sch140, sch160, xxs, sch5s, sch20s, sch40s, sch80s
Max. wall thickness: 200mm
Materials
Carbon steel: ASTM/ASME A234 WPB-WPC
Alloy steel: ASTM/ASME A234 WP 1-WP 12-WP 11-WP 22-WP 5-WP 91-WP 911
Stainless steel: ASTM/ASME A403 WP 304-304L-304H-304LN-304N
ASTM/ASME A403 WP 316-316L-316H-316LN-316N-316Ti
ASTM/ASME A403 WP 321-321H ASTM/ASME A403 WP 347-347H
Low temperature steel: ASTM/ASME A402 WPL 3-WPL 6
High performance steel: ASTM/ASME A860 WPHY 42-46-52-60-65-70
Bending, squeezing, pressing, forging, machining and more
>>
