500L up Resin Epoxy Resin Auto Car Body Filler Bodywork Sealer Putty Mixing Machine

Product Description

Product Description
Part One: What is car polymer body filler putty?
It is composed of putty paste and curing agent in a certain proportion. It is a paste-like material prepared from pigments, fillers, resins, and driers. It is used on pre-primed substrates to fill objects defects such as surface pits, welding seams, scratches, and corrosion, until a flat and smooth surface is formed.
There are generally three types of resins used in putty production, alkyd resins, unsaturated polyester resins, and epoxy resins.
Some products:
1. Alloy putty is also called metal putty, which has better performance than ordinary putty.
2. The filling material of fiber putty contains fiber substance, which is light in weight after drying but has high adhesion and hardness.


Detailed Photos
How to make auto polymer putty filler?
It mainly involves feeding equipment, high speed dissolver, mixer, grinding machine, filter machine, filling machine, vacuum pump, etc. But not all putty production requires the above equipment.
Why? How to choose proper auto polymer body filler putty making machine?
One fact is that, the main problem that needs to be solved in auto resin putty production equipment is the uniform mixing of powder and resin. Whether it is dispersing mixing equipment, kneading mixing equipment, grinding equipment and filtering equipment, they are all used to solve this problem. Specifically, depending on the proportion of powder and liquid added, the viscosity of the resin is different, and the viscosity of the final product is also different. In addition, sometimes the fiber material will also increase the difficulty of mixing. Therefore, the selection of equipment should be carried out according to the viscosity characteristics of the material.

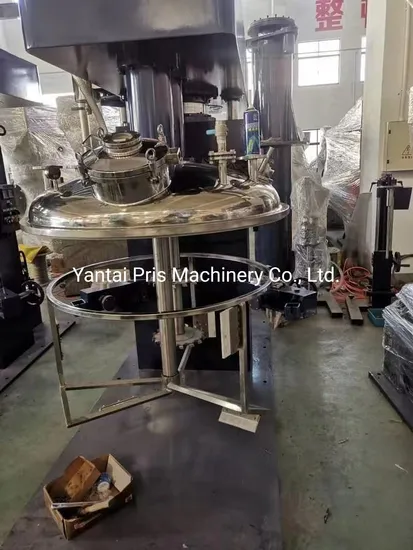

Features of vacuum dispersion mixing tank:
1) According to the volume of the tank, the equipment can be equipped with a set of low-speed agitator with wall scraper and bottom scraper device. The agitator can be a twin-shaft agitator or a concentric twin-shaft agitator. For large specifications, a three-axis agitator or a multi-functional mixing tank can be used.
2) With an open lift structure, multiple containers can be used with one mixer to improve work efficiency. In addition, the tank can be heated, cooled, etc. However, if it is a reactor type structure, a matching pump is required to provide the discharge speed and increase the production efficiency. However, the cost of the reactor type multifunctional mixing tank is much less than that of the lifting type.
3) Automatic program control, frequency conversion speed regulation
4) Hydraulic lifting, or pneumatic lifting.
5) It can be operated with positive and negative pressure.

---
