Lxda-200 End Milling Machine for Aluminum Profile End Milling, Step Face and Slotprocessing etc, at The Same Time Milling Multi-Piece Profiles

Product Description

Technical Parameters

Model	lnput power	Power supply	Air pressure	Motor rotary speed	Diameter of main shaft	Cutter adjustment	Milling cutter height	Diameter of miling cutter	Worktable journey	Overall dimension
LXD-200	1.5KW	380V/50Hz	0.5~0.8MPa	2800r/min	φ32mm	0~ 80mm	70mm	φ110~φ200mm	0~320mm	850×740×1280mm
LXDA-200	1.5KW	380V/50Hz	0.5~0.8MPa	2800r/min	φ32mm	0 ~ 80mm	70mm	φ110~φ200mm	0~320mm	850×740×1350mm

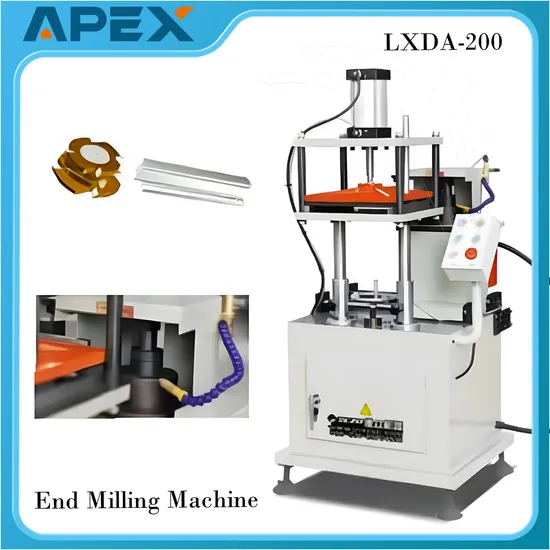

LXDA-200 End Milling Machine
Used for aluminum profile end milling ,step face and slotprocessing etc,at the same time milling multi-piece profiles.
1.This machine is designed for tapping, routing and milling holes, lock holes, launder and other slots on the profiles of curtain walls. It can work on various profiles.
2. It adopts YASKAWA servo-motor and driver which are made in Japan.
3. It adopts high speed HSD spindle of Italy
4. It adopts HIWIN linear guide and YYC grinded gear racks result highly precise process.
5. It adopts computer control system, CAD-CAM software, which are used in industry area specially.
6. It adopts SEIMENS electrical & pneumatic products, solenoid valves, SMC gas resource processors and JPC air cylinders.
6. Revolving six position mills makes the mill-changing convenient.
7. Double profile locating devices, no need to stop the machine while taking the profiles on and off.
8. With half-close safeguard device to insure the personal safety of the operator.
Our Advantages
Product details and features

Production Process
Packaging & Shipping
Company Profile
After Sales Service
1.One year warranty time, we can repair and replace parts for free in one year.
2.Technical support in 24 hours online, TM, Skype, E-mail, solving the relative questions in time.
3.Life time free maintenance service.
4.Free training course at our factory with professional engineers.
5.We provide the consumable parts at agent price when you need replacement.
FAQ
1. Q: Are you a manufacturer or trading company?
A: Yes, we are a manufacturer.We are focusing on metal pipe/tube processing machines production.
2. Q:Where is the nearest airport to your company?
A: JINAN Airport.
3. Q: How to choose the pipe/tube bending machines?
A: You have to inform us following details:
- Pipe Outdiameter Range
- Wall thickness range
- Bending Radius Value
- The pipe material
- Bends Number on one pipe
- The drawings if possible
4. Q: What certificate do you have?
A: We have both ISO and CE certificate.
5. Q:How about your service?
A: Before Sales Serive:
1. We will help our customer confirm the right model according to the offered pipe inforamtion.
2. Welcome to visit our factory to see our machine and our workshop before you place an order.

---
