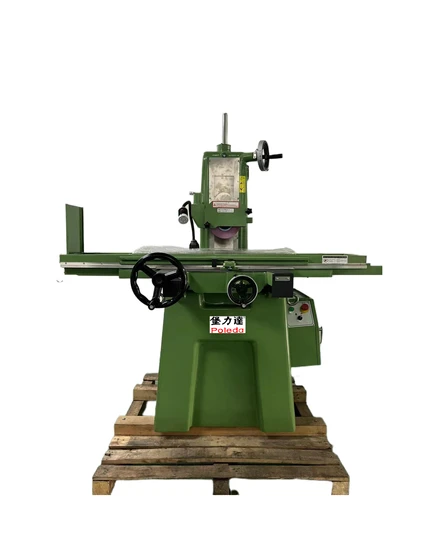

618s High Precision Surface Grinding Machine (table lengthened and widened) Taiwan Quality

Product Description

Surface grinding machine product introduction
Surface grinding machine is a grinding machine, is mainly used by the rotation of the grinding wheel to grind the Machined part, to achieve the required flatness. According to the shape of the table, surface grinding machine can be divided into two kinds of rectangular table and circular table. The main parameters of the rectangular table surface grinding machine are the width and length of the table, and the main parameters of the circular table are the diameter of the table. According to the different shaft types, surface grinding machines can also be divided into horizontal shaft and vertical shaft grinding machines.
Product Description
Product Parameters
Mechanical Properties
Machine Structure: Our machine's main castings are crafted from premium high-grade cast iron and undergo thorough annealing treatment to eliminate internal stress. This process ensures exceptional precision, high rigidity, and significantly prolongs the machine's lifespan. Slide Way: Featuring a double V slide way with wear-resistant resin TURCITE-B, precision shovel-flower craftsmanship, and smooth sliding, this machine excels in both wear-resistance and forming grinding.
Cylindrical Straight Spindle: Equipped with P4 ultra-precision angular roller bearings, this machine boasts low noise, vibration-free operation, and substantial torque, even during high-speed rotation. Ideal for heavy cutting and diverse forming grinding applications.
Automatic Lubrication System: Our machine incorporates a state-of-the-art circulating automatic lubrication system. Upon spindle activation, lubricating oil circulates instantly, ensuring forced lubrication for each screw and slide. This significantly reduces slide wear. An oil mirror above the column provides real-time lubrication monitoring.

Product Name
Product Name		Grinding machine
Product model		M618/618/618S/618H
Product technical parameters
	1 Table size		150*450MM(6*18'')
	2 Maximum grinding length		475MM(18-3/4'')
	3 Maximum grinding width		160MM(6-1/3'')
	4 Distance between spindle center and table surface		350-400MM(13.8-15.7'')
	5 Standard disk size		150*350MM
	6 Left and right feed/manual stroke		485MM(19'')
	7 Front and rear feed/manual stroke		160MM(7'')
	8 Hand wheel feed (per turn)		5MM(0.2'')
	9 Hand wheel feed		0.02MM(0.001'')
	10 Lift feed/hand wheel feed per scale		0.005MM(0.0002'')
	11 Grinding wheel size (diameter * width * aperture)		180*16*31.75MM(7*2/3*1-1/4'')
	12 Spindle speed (50/60HZ)		2800RPM
	13 Spindle motor		1.5HP
	14 Weight (approximate)		800kgs
	15Machine size (L * W * H)		1350*1050*1850MM
	Grinding machine configuration	Accessories name and specification		quantity
	Standard parts for machine tools	1,Grinding wheel and flange		1
		2,Wheel removal wrench		1
		3,Hexagonal wrench		1
		4,Leveling screws and foot pads		1
		5,Grinder guide oil		1
		6,Toolbox and adjustment tools		1
		7,Hanging rings		1
		8,Grinding wheel		1
	Special parts for machine tools	9,Grating electronic ruler		1
		10,Detail disk		1

Detailed Photos
Our Advantages
Packaging & Shipping
Certifications
FAQ
1.What is the MOQ for your production?
A.The MOQ depends on your requirements for color, logo and so on.For some normal items, we have in stock, the MOQ is 1 set.
2.How to control the quality of the products?
A.We have always placed great emphasis on the quality level is maintained.Moreover,the principle we always maintain is "to providecustomers better quality, better price,and better service".
3.What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Machine, Lathe Machine , Milling Machine,Grinding Machine ,Vertical Machining Center ,DrillingMachine ,Radial Drilling Machine ,Sawing Machine and so on .
4. What is your trade terms?
A :Ex-works FOB, CFR and CIF all acceptable.
5.What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
6.What CNC system do you use?
A:FANUC, SIEMENS, MITSUBISHI, SYNTEC, HCN .It depends on your choice.
7.How can I choose the most suitable machines?
A:Send us the products drawings and applications ,we will choose the most suitable machines for you.
8.what kind of package do you offer?
A.Normally in plywood case, to make sure all goods in good condition. Customized package can be acceptable.
9.Can your plant do OEM?
A:Yes it is no problem. We can do OEM and ODM for any customers 10.How about the warranty?
A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for mac

---
