4000lbs Level Super Electric Winches with Wire Rope

US$60.00 50 Pieces (MOQ)

Basic Info.

Model NO.

X4000

Pull Direction

Forward

Electric Winch Model

ATV

Working Voltage of Electric Winch

Low Voltage

Brand

Zhme

Applicable Environment

ATV

Certification

GS, CE

Product Name

Electric ATV Winch

Motor

Winch Motor 1.6HP/1.2kw, 12V DC

Rated Line Pull

4000lbs

Gear Train

3 Stage Planetary Gear 198:1

Rope

Winch Wire Rope 6.0mm X 10m

Certificate

CE, SGS

Waterproof

IP68

Dimensions

348mm X 114mm X 120mm

N.W.

11kg

MOQ

50 Winches

Transport Package

Color Box

Specification

CE, SGS, ISO9001: 2008

Trademark

ZHME

Origin

Zhejiang, Ningbo

HS Code

84253190

Production Capacity

China

Product Description

4000lbs level super electric winches with wire rope
Advantage:
1. Motor: High performance motor provides fast line speed.
2. Contactor: High efficiency 200 Amp Rated contactor.
3. Gear Box: Waterproof IP68, low noise, steady work.
4. Brake: Independent and automatic, safety and reliability.
5. Waterproof: IP68.
Specifications:

Specifications
Item	X4000
Rated Line Pull	4000lbs(1818kgs) single line
Motor	Permanent magnetic motor 1.6hp/1.2kw, 12V DC
Gear Train	3 stage planetary gear
Gear Ratio	198:1
Braking Action	Automatic in the drum
Fairlead	4-Way Roller Fairlead
Rope	Wire Rope 6.0mm x 10m
Drum size	50mm x 76.5mm
Dimensions	348mm x 114mm x 120mm

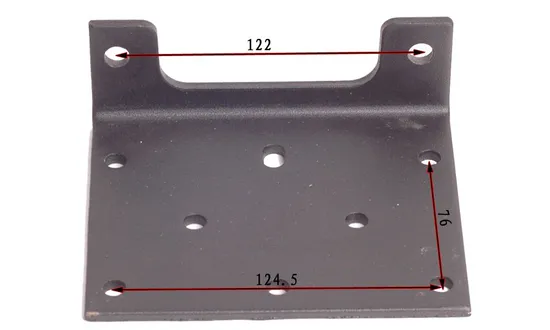

Mounting Bolt Pattern	124mm×76mm
N.W.	11kg
