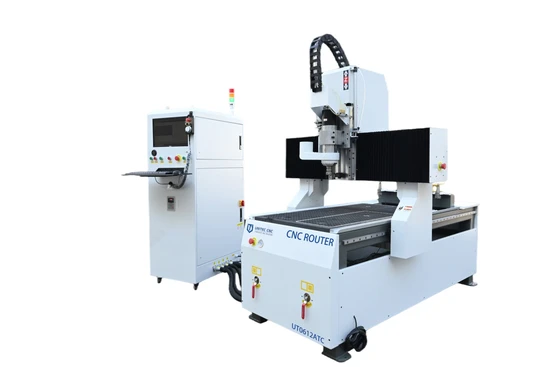

Small CNC 3D Wood Automatic Engraving Router Machine with Computer Controller Mini Atc Carving Machine 600X1200mm

Product Description

Detailed Photos

MAIN PARTS
Taiwan CSK Linear Guide	5.5KW metal working spindle
Heavy Duty Frame	7.5KW Vacuum pump
Delta Servo Motor and Driver	Ball Screw
Linear ATC with auto calibrator	Ncstudio Controller

Product Parameters

XYZ Travel Size	600X1200X220mm
Max Working Size	600X1200X220mm
Table Size	650 X 1250mm
Transmission Type	XYZ ball screw
Guide Rail	Taiwan Linear Guide
Table Type	T slot
Spindle Power	5.5KW China ATC spindle
Tool Changer	Linear Tool Changer
Spindle Speed	24000rpm
Max Travel Speed	40000mm/min
Max Work Speed	20000mm/min
Motor	AC servo motor
Work Voltage	AC380V 50HZ
Controller System	Ncstudio or Syntec
Processing Accuracy	±0.05mm
Repeat Positioning Accuracy	±0.01mm
File Format	G code or PLT
Overall Weight	600KG
Overall Dimension	1000X1500X1800mm

Product Description
Applications and Materials
Industry Area: Aluminum panel,copper,soft metal,engineering plastic,epikote,ABS panel
Highlights
1.Integral welded big square steel pipe, mounting surface of guide ail and rack processed by high-precision milling machine, ensure the machine running stability
2.Big load capacity and long life;Y axis driven by double motors and planetary reducer; High machine rigidity and strong cutting strength ensure non deformation under high speed running.
3.Various of table styles makes convenient clamping materials and improves overall production efficiency
4.Equipped with automatically materials locating system, improve the efficiency of materials clamping and solve the accuracy problem of processing obverse and reverse side of the material
5.Equipped with automatically lubrication system. Easy periodic maintenance with lightly pressing.
6.Efficiency; Smooth bottom surface, clear edge contour and fine processing quality.
7.accessories which will ensure the overall running performance
8.Strict compliance with CE electrical standards for circuit design and production, and all
Parts have safe and reliable protection device. Certifications
