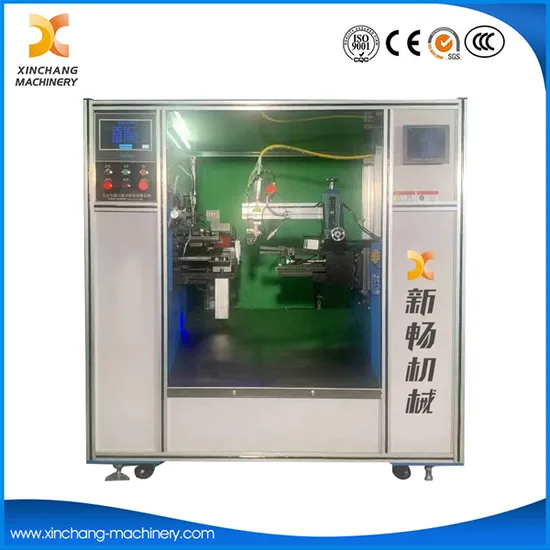

Fully Automatic Stainless Steel Ring Steel Strip Laser Welding Machine

Product Description

Product Description
A. Model and specifications

Model	XC-K53-1000	XC-K92-1000	XC-K160-1000
Laser power	1000W	1000W	1000W
Steel strip width	8-53mm	45-92mm	80-160mm
Welding capacity	14-18 pcs/min	12 pcs/min	10pcs/min
Steel strip thickness	0.13-0.7mm	0.2-0.5mm	0.2-0.4mm
Steel ring diameter	65-700mm	85-700mm	120-700mm
Total machine power	5kw	5kw	5kw
Input voltage	220V	220V	220V
Nitrogen protection	Optional	Optional	Optional
Mark function	Optional	Optional	Optional
Cooling mode	Water	Water	Water
Machine weight	1350kg	1350kg	1350kg
Overall size	148x128x168 cm	148x128x168 cm	148x128x168 cm

B. Application
It's used for the stainless steel strip of Glass cover, Basket, Flour sieve,Enamel pot,Trash can,Steamer etc.The steel strip specification is 8-160mm width, 0.13-0.7mm thickness and material SS304,201,410,430.
C. Advantages Beautiful design appearance, small floor space(148x128x168cm) Built-in fiber continuous laser, No external space occupied. Welding capacity 10-18 pcs, efficiency is higher More suitable for seamless steel rings, the welding quality is better. Succinct design of circuit, more stable and power saving, single phase 220V power supply No complicated operation, the operation in HMI is very simple, only need to set the percentage of laser. D. Main configuration Automatic forming servo tooling: self-made Control system: Omron Fiber continuous laser: JPT Cooling water chiller: Bingyue
E. Welding samples photos:
Detailed Photos
Company Profile
We, Ningbo Xin Chang Machinery Co.,Ltd are a professional designer and manufacturer in friction welding machine, resistance welding machine and Heat exchanger equipment. Our factory is in this line more than 20 years, we have more than 10 senior mechanical and electrical specialists and total more than 200 staff, our machine is famous in China. We have CCC, ISO9001 and CE certificates.
Over the years, we have exported so many machines to 30 and more countries, such as France,Spain,Poland,Russia,Indonesia,Vietnam,Pakistan,India,Mexico,Egypt etc.
Our main products are Heat exchanger equipment, Friction welding machine, spot welding machine, projection welding machine, butt welding machine, seam welding machine, multi head welding machine for wire mesh, and other various special welding machine for metal connection in different industries.
We always adhere to the management idea of "Integrity, profession, innovation, and win-win", to make Xin Chang becomes trustworthy enterprise of customers. Good product quality, perfect after-sales service, and professional technical support make customers choose no regrets and worry-free use
FAQ
1.Q: What about your standard delivery date ?
A: Usually 30-60 working days. Our company provide just-in-time delivery
2.Q: How can you guarantee quality?
A: You could test samples before order,and we have professional QC and precise machining equipment; Always final Inspection before shipment;
3.Q: How long is the guarantee?
A: For one year after the custumer received the machine.
4.Q: What do we need to do if the machine fails?
A: In the guarantee time (1 year),we will send the spare parts to you for free,and provide the technical consultant for any time.
5.Q: Can I make my own design and logo on the product?
A: Yes, we do OEM.Welcome global partners.
6.Q: what is the packing mode?
A: wooden case or FCL with container.
7.Q: what is your after-sell service?
A: After-Sales
1) Training your workers how to install the machine, how to use the machine.
2) Engineers available to service machinery overseas
3) 1-year guarantee ( free maintain in a year)
4) Replacement parts and other accessories provided

---
