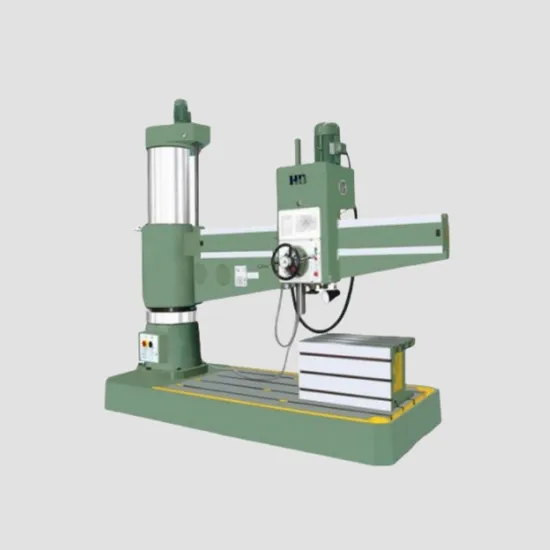

Heavy Duty Manufacturer Steel Press Hydraulic Radial Drilling Machine Z3040X10 13

Product Description

Product Picture
Specification Parameter

Specification		Unit	Z3040	Z3050	Z3080	Z30100	Z30125
Max.drilling capacity		mm	40	50	80	100	125
Distance from spindle center to column axis	Max.	mm	1200	1600	2530	3150	4000
	Min.	mm	330	350	530	570	600
Spindle head travel		mm	870	1250	2000	2580	3400
Distance from spindle nose to work base	Max.	mm	1000	1220	2000	2500	2500
	Min.	mm	260	370	550	750	750
Spindle travel		mm	270	315	450	500	560
Spindle taper		No.	4	5	6	6	80
Spindle speed		r/min	75-1220	25-2000	16-1250	8-1000	6.3-800
Spindle speed steps			6	16	16	22	22
Range of spindle feed		mm/r	0.1-0.25	0.04-3.2	0.04-3.2	0.06-3.20	0.06-3.20
Spindle feed steps			3	16	16	16	16
Arm travel		mm	580	580	1000	1250	1250
Arm lift speed		m/min	1.3	1.2	1	0.61	0.6
Arm swing angle		°	±180	±180	±180	±180	±180
Drilling depth per revolution dial		mm	115	122	151	170	170
Max. torque of spindle		N.m	300	500	1568	2450	3136
Max. force of spindle		N	6300	18000	35000	45000	49000
Main motor power		Kw	2.2	4	7.5	15	18.5
Arm lift motor power		Kw	0.75	1.5	3	3	3
Worktable size		mm	400*560	500*650	800*1000	800*1250	800*1250
Machine weight		Kg	1600	3500	10500	20000	28500
Machine dimension		mm	1800*760*2100	2500*1070*2880	3730*1400*3835	4650*1630*4425	5817*2000*5120

Company Profile
Dalian Haidi Machinery Co.,Ltd is a professional manufacturer that specializes in the development, research and production of single-column vertical lathe, double-column vertical lathe, horizontal lathe, radial drilling machine, slotting machine, boring-milling machine, machining center, customized special machine tool, and other equipment. The researched products by our company have such advantages as a great variety, complete specification, advanced technology and outstanding quality.
Our company, founded in June 2007, has a registered capital of RMB 60 million Yuan and covers a building area of 30,000 square meters. Now we have more than 200 staff members, including 11 senior engineers, 8 senior managerial staff,over 160 technical workers.
Our own casting factory was established in 1983 and has an annual output of over 20,000 tons. Our company is the largest enterprise that specializes in the casting of machine tool in southern Liaoning.In the meantime, it has offered great support to speed up our company's product research and production and made great contribution to making sure products are supplied to customers in the shortest duration.
Our company follows the principle of "independent innovation, govern enterprise by good virtue and prosper enterprise by good faith". We shall work hard persistently to make innovation and breakthrough and strive to become a first-rate enterprise. We would like to work hand in hand with all our friends toward a brilliant future.



Exhibition Photos
Certificate
Packing&Shipping
FAQ

---
