New CNC Dk7745 Precision Servo High Speed Wire Cutting Machine for Sale

Product Description

Overview
Product Description
1.Work surface travel:450mm×550mm
2.Maximum thickness of cutting workpiece:450mm adjustable
3.Work surface size:510mm×810mm
4.Maximum taper of cutting workpiece:6°/80mm
5.Maximum cutting current:6A
6.Maximum cutting efficiency:100mm2/min; (Cr12 40mm thick)

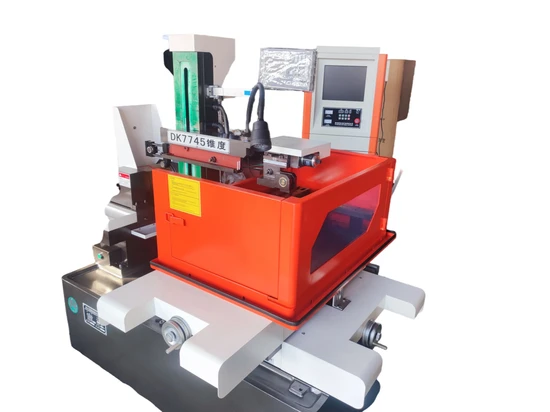

Detailed Photos
Product Parameters

Specification	DK7745
Work surface size	510mm×810mm
Work surface travel	450mm×550mm
Maximum thickness of cutting workpiece	450mm (adjustable)
450mm (adjustable)	6°/80mm
Maximum cutting current	6A
Processing accuracy	0.015 (Φ10mm)
Electrode wire diameter	Φ0.18mm
Workbench load	600kg
X-axis travel	450mm
Y-axis travel	550mm
Z-axis travel	450mm
X, Y axis positioning accuracy	Total length ≤ 0.02mm
Lead Screw	Precision ball screw
Guide	Precision steel V flat guide rail
Bed	Semi-enclosed
Spindle up and down movement distance	100mm~600mm
Water tank	Large flow, low pressure special wire cutting water tank Water tank capacity ≥ 60L
Working fluid	Special emulsified paste or water-based cutting fluid
Power supply	380V±10%,50HZ
Total weight of machine tool	1250kg
Machine tool dimensions	1350mm×1650mm×1720mm

Certifications
Hot Sale Products
FAQ
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .

3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.

5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ; Irrevocable LC at sight .

6: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )

---
