High Caliber Large Diameter Plastic PE PP PVC HDPE Solid Wall 6m Pipe Shredder Machine

Product Description

Product Description

Model	WPG800	WPG1000	WPG1200	WPG1400
Main Shaft Length(mm)	800	1000	1200	1400
Main Shaft Tactical Diameter(mm)	850	1050	1250	1450
Main Shaft Speed(rpm)	40	36	36	18
Ram Travel(mm)	6500	6500	6500	6500
Rotor Blades(pcs)	57	105	135	160
Fixed Blades(pcs)	2	3	4	5
Motor Power(kw)	2*37	2*45	2*55	2*75
Hydraulic Power(kw)	11	15	18.5	22
Screen Mesh Diameter(mm)	50	50	50	50
Cutting Chamber Dimension(mm)	850*700	1050*700	1250*700	1450*700
Overall Dimension(L*W*H)(mm)	11300*3700*3400	11500*3900*3600	12000*4100*3800	12200*4300*4000
Weight(kg)	11000	14000	17000	21000

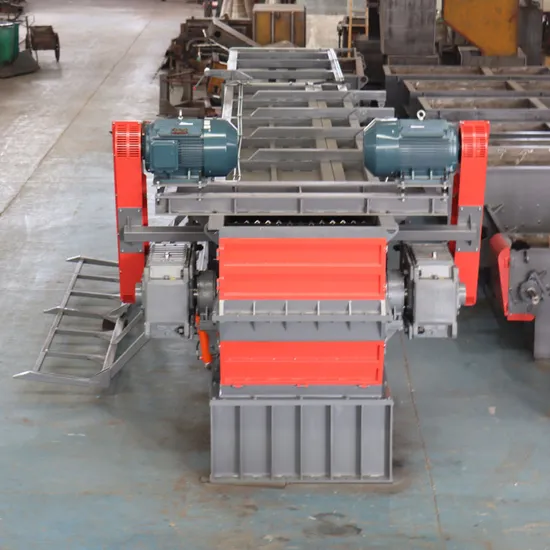

Pipe shredder for high-caliber large-diameter plastic PE, PP, PVC, HDPE solid wall pipe, bundles of small pipes and materials, developed special shredders. This model has a unique design of the level of horizontal feeding in the box, not the length of pipe restrictions. According to the maximum length of the customer pipe to determine the machine model.
Can also be used in accordance with the material requirements with plastic crusher, milling machine, composed of a complete set of plastic refining production line. High efficiency, simple and safe operation.
Detailed Photos
Application
More Products

Company Profile

FAQ

1.What information shall I provide when I request for quotation?
Information should be including parameters or technical requirements, such as: processing materials, output size, capacity, etc.
2. Are you trading company or manufacturer?
We are ISO9001 certified manufacturer focus on fabricating solide waste recycling machine since 1995, address: No.3 Geely Avenue, Toumengang New Street, Linhai, Taizhou 317000, Zhejiang China.
3. What kind of products do you offer?
We have four main categories of products, shredder, plastic crusher, plastic recycling and washing line, plastic granulator andauxiliary equipment.
4.What are the applications of these products?
Our products are wildly used in shredding and crushing of plastic woven bags, plastic film, PA/PC plastic block, household appliance shells and inner tanks, plastic pipes, plastic containers, wastepaper, straw, wood, urban household garbage, medical waste, electronic waste and waste metal, etc. And waste plastic recycling and washing and plastic granulation.
5. Do you support product customization?
Yes, not only we provide customized service but also provide solutions to our customer.

---
