| Main Specifications and Technical Parameter |

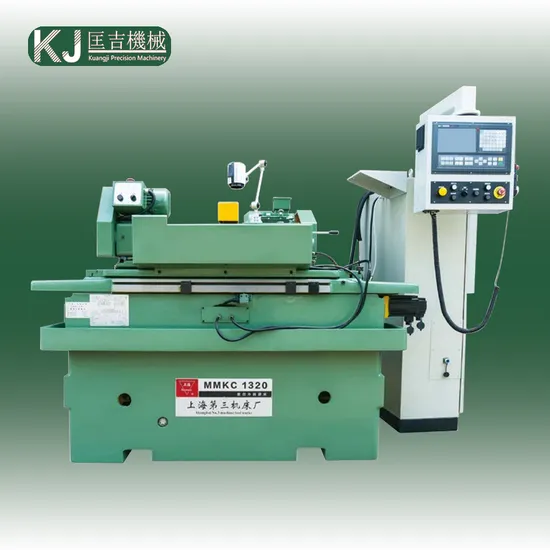

| item | MKC1320 |
| Max diameter of grinding | 200 mm |
| Max length to be ground | 500 mm |
| Max workpiece weight | 50 kg |
| Max travel of the table | 600 mm |
| Min feed of the table | 0.001 mm |
| Spindle hole taper | No.3 |
| Spindle Chuck | 125 |
| Tailstrok quill hole taper | No.3 |
| Min feed of the wheelhead | 0.001 mm |
| Spindle speed | 60.85.120.170.230,460 r/min |
| Max travel of wheelhead | 170 mm |
| Max linear velocity of wheelhead | 47 m/s |
| Grinding wheel size(Dxtxd) | 400x40x127 mm |
| Work pressure in hydraulic system | 0.8~1 Mpa |
| Flow rate of cooling pump | 25 L/min |
| Spindle motor | 0.23 / 0.37 kw |
| Grinding electric machinery | 4 kW |
| Total capacity | 8 KVA |
| Overall dimensions(LxWxH) | 2400x1700x1800 mm |
| Weight of machine | 2500 kg |
| Work precision |
| Roundness | 0.0015 mm |
| Cylindricity | 0.005 mm |
| The surface roughness Ra | 0.32 μm |
| Main accessories |
| 1.Grinding wheel dresser | 1 set |
| 2.Grinding wheel clamp | 3 sets |
| 3.Grinding wheel balaner | 1 set |
| 4.Grinding wheel | 1 pc |
| 5.Coolant tank | 1 set |
| 6.Other accessories | |
