RO Drinking Water Purification Filter System Water Treatment Plant

Product Description

Products Description
RO Water Treatment Reverse Osmosis SystemReverse osmosis (RO) is a kind of water purification technology that uses a semipermeable membraneunder pressure applied to remove ions, molecules, and larger particles , bactaria and so on from water, and is used in both industrial processes and the production of potable water.

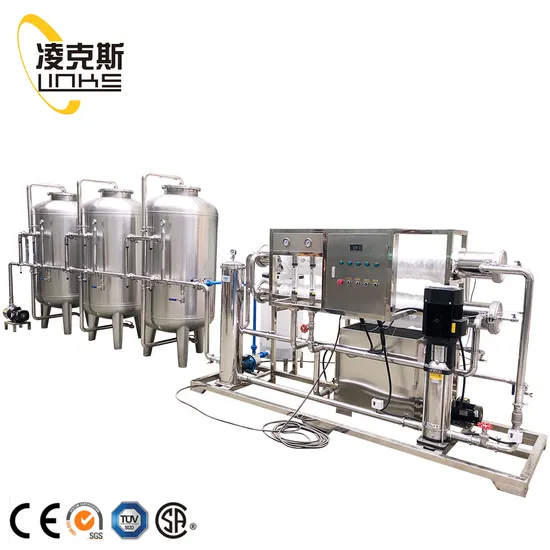

Automatic Pure Water Treatment System With Reverse Osmosis Technology
Capacity	Capacity (Ton Per hour)	General power	Size (L*W*H)	Weight (kg)
RO-500L/H	0.5t	0.75kw	1550*900*1820mm	350kg
RO-1000L/H	1t	1.5kw	1980*900*1940mm	500kg
RO-2000L/H	2t	2kw	4800*700*2050mm	700kg
RO-3000L/H	3t	5kw	6000*800*2200mm	800kg
RO-4000L/H	4t	6.5kw	7000*900*2400mm	1000kg
RO-5000L/H	5t	8kw	8000*1000*2700mm	1500kg
RO-6000L/H	6t	12kw	8500*1600*1920mm	2000kg
RO-8000L/H	8t	15kw	1000*1870*3000mm	4000kg
RO-10000L/H	10t	20kw	12000*1700*3500mm	4500kg
RO-15000L/H	15t	25kw	12500*1700*3500mm	6500kg
RO-20000L/H	20t	30kw	13000*1900*3500mm	9000kg
RO-30000L/H	30t	35kw	13500*2300*3800mm	12000kg

*Typical Reverse Osmosis Processing:Raw water pump → Silica sand filter → Activated carbon filter→ Sodium ion exchanger → Security filter → High-pressure pump → Reverse osmosis system →Uv sterilizer→Ozone sterilizer →Finished Water tank
1. Raw water pump: provide the pressure to silica sandfilter/active carbon filter
2. Silica Sand filter: get rid of turbidity, suspended matter, organic matter, colloid and so on
3. Activated Carbon filter: Remove the color, free chloride, organic matter, harmful matter and so on
4, WATER Softener: Get rid of calcium and magnesium ions in original / source water, reduce water hardness.
5. Security filter: prevent any deposition of large Particles, most of the bacteria, and viruses into the RO membrane, The accuracy is 5um, for holding back any large particulates such as large iron, dust, suspended matter, impurity.
6. High pressure pump-- Provide the high pressure to RO membrane(at least 2.0 Mpa).
7. RO system-- main part of pure water treatment plant. The desaltation rate upto 99%, it is capable of removing over 99% of ions, bacterias, particles and 98% of organic.
8.UV sterilizer -- kill some bacteria that may also pass through the reverse osmosis
9.Ozone sterilizer -- Use ozone Kill bacteria not killed by UV 10.Finished water tank -- For filter water storage Details ImagesMain Features1. The world's most advanced Reverse Osmosis technology, optimized design and exquisite production technics. 2. All in one compact design, well-chosen materials. 3. High salt rejection rate more than 99% , 4. stable performance, safe and reliable, up to date and ingenious design. low cleaning frequency. 5. On-line conductivity monitoring , ensure good quality of water output . 6. Automatic control system; easy installation,operation and maintenance;small size. 7. Precise design of technics and well-chosen material . 8. Long lifetime, low energy consume and low maintenance cost.

Name	Brand	Area
PLC	Siemens	Germany
Inverter	Siemens	Germany
Contactor	Siemens	Germany
Touch screen	Siemens	Germany
Motor	ABB	Swiss
Pneumatic parts	FESTO	Germany
Electrical parts	Schneider	France

FAQ1) Can your factory provide the whole plant from A to Z?
A: Yes, we can provide the complete plant, from bottling making plant, water purification plant, to filling packing plant.
2) Are all machinery your factory made?
A: Our factory make the water purification and filling packing plants. We do not make the bottle making machinery,
we have good quality bottle making machinery partner, and we provide to customer same long warranty time and good after service.
3) How can I know the machinery quality before I order?
A: Frist, we will invite you visiting our factory to check the machines quality, and show the machines running for you in our factory.
4)What certificates you can provide?
A: Our factory provide the CE, SGS, ISO, and accroding to some countries, we also can provide the Pvoc, Coc, Soncap...ect
5)Can your factory make the bottle drawing, workshop layout, and labels for us?
A: We can help customers design their own bottle shape, workshop layout and label drawings, these jobs are free charge.
(Workshop need customer to provide the size of factory)
6)Installation and Training Time
A: We have professional engineer for oversea installaion and training, they can speak English, and have much experience oversea work.

---
