Ce Sle Series Relay Typr LED Voltage Stabilizer

Product Description

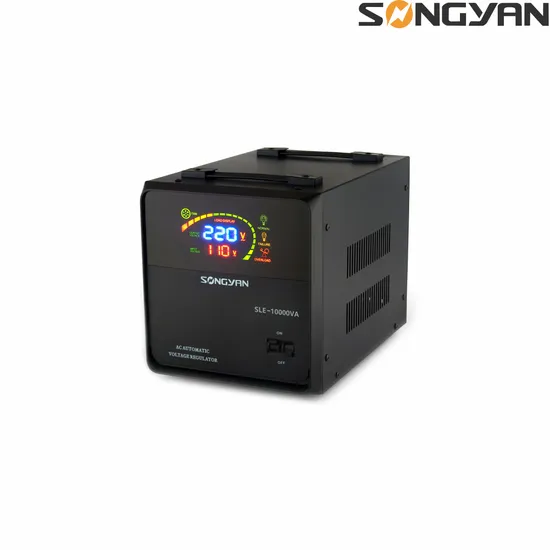

SLE Series (Voltage stabilizer)
Brand name: Songyan (Welcome OEM or ODM)Detailed PhotosFeature:
Model: 500VA-12000VA
Display:LED Digital
Type: Relay Control
Transformer: toroidal transformer
Input range: 140V-260V,Wide input voltage range
Output volt: 220V±8%
Protection: Over voltage / low voltage / overload / short circut / overheating / surge / High voltage
Color: White, Black, Grey or Customized designApplication:Household Appliances
ApplicationsTV-SET, HI-FI, DVD, FAX, Copy machine, Scanner, Air Conditioner, Computer, Test equipment, Fridge&Freezer,
Lighting, Equipment Etc.Product Parameters

Requirments / Model		500VA	1000VA	1500VA	2000VA	3000VA	5000VA	8000VA	10000VA	12000VA
Input	Phase	Single phase
	Voltage	140V-260V
	Frequency	50/6OHz
	Adjusting time	<0.5s (when input voltage has a change of 10%)
Output	Voltage	220V±8%AC
	Frequency	50/60Hz
	Loading power factor	0.8
Environmental	Operating temperature	-5~+40ºC
	Storage temperature	-10~+50ºC
	Humidity	20% to 90%
Protection	Over Volt.	YES
	Overheating	YES
	Over load	YES
	Short Circuit	YES
	Low voltage	YES
	Delay	YES
Packaging	Net Wt.(KG)	2.05	3.95	4.59	5.35	8.81	11.67	15.64	17.3	19.35
	PCS PER CTN	4				1
	Gross Wt.(KG)	9.51	17.8	20.36	23.4	9.8	12.98	17.03	18.69	20.74
	Product size(mm)	217*109*145	240*139*183			342*220*244		390*220*244
	Package size(mm)	495*270*190	710*330*230			415*270*300		460*270*300

Our Advantages
Assembly line pictures:(1).Case(2).Spraying plastics(3).Injection molding
Our moulds:(4).Transformer(5).Assemble & tesing & packageCertifications

FAQ
Q:What is the material of your products?
A: The shell material is ABS, PC, PP, V0 Flame-retardant level. Hardware is 0.7 mm thick of beryllium bronze.
Q:How can I get some samples?
A:All the sample is available in stock, we can send you free sample if you can pay the express fee.
Q:How does your factory do regarding quality control?
A:We have professional QC department, we inspect all steps from the purchase of the materials to the departures of products from our factory according to the standard test. We always attach great importance on quality control from the beginning to the end . Our factory has gained CQC,ISO9000,CE,Rohs ceritificate.
Q:When you ship my order?
A:Normally 30 to 45 days after receiving your payment,but it can be negotiated based on production schedule.
Q: How long is the product warrenty period?
A:1-3 year.

---
