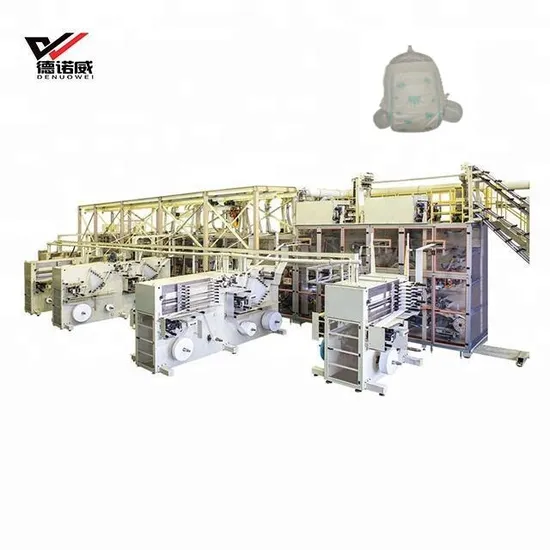

Disposable Baby Diaper Production Line Manufacturing Machine Automatic

Product Description

Product Parameters

Subject	Parameter
Designed Speed	800pcs/min
Stable Production Speed	500pcs/min
Product Weight Deviation	±5%
Passing Rate	≥98%
Operating Rate	≥90%
Power Supply	380V 50Hz
Electrical Supply	380V ±5%, 50Hz Three-phase four-wire + ground wire
Power Installed	About 280KW (Not included hot melt glue machine)
Supply Pressure	0.6-0.8Mpa
Overall Size (L× W× H )	24m×4m×3.6m( just for reference)
Machine Sizes (L× W× H )	22m×2.1m×3.3m ( just for reference)
Weight	55 Tons

Configuration 1.Product structure: Carrier tissue,Fluff core(mix with SAP),Topsheet(3-pcs structure),ADL, Backsheet, Back Release paper,Wings Release paper,Pouch film.
2 .Product size: Daytime use 240mm Night use 285mm (customized design)
3.Control system: PLC programming control, HMI operation
4.Tension system: Carrier tissue,absorbent paper, top sheet NW,leg cuffs NW,ADL,PE film,back release paper,Wings release paper,pouch film. A&B shaft active unwinding by Inverter motor
5.Drive system: Full servo drive.Using import conveyor and timing belt.Important part using import bearing.
6.Safety system: Safety guard installed at the operating side,equipped with emergency stop switch,security identifier.Driven side is equipped with safety pull wire.
Main product
Company Information
Quanzhou DNW Machinery Manufacturer Co., Ltd.is professional in the research, development, production, sales and service of disposable hygiene product manufacture equipment.
Our company has consistently adhered to "quality as a fundamental, development by innovation" as businessculture. DNW have strong design and technology team and equipped with advanced CNC gantry machining center, CNC high-precision CNC lathe, large-scale radial drilling machine, precision saddle lathes, milling machines and other processing equipment.
DNW Precision Product range:
Baby Diaper Production Line (Include:I &T shape diaper,Baby pants,Full Elastic Waistband diaper) Adult Diaper Production Line (Include:Adult diaper,Adult pants) Sanitary napkin & Panty Liner Production Line
Menstruation Panty Production Line
Under Pad Production Line
Disposable Breast Pad Production Line
FAQ
1. What is your manufacture date ?
A: The manufacture date is 150 days after deposit receipt.

2. What is your order payment terms ?
A: 30% deposit in advance and 70% balance before shipment
3.Can you present your machine installed in running mode? A: You are warmly welcome to visit our factory .We will show you know the machine is running on the site and we can also show you how our machine is running at one of our local customer's factory if you are interested. 4. Where is your factory located? How can I visit it.
A:Our factory is based in Quanzhou city,Fujian province,China
You can fly to Jinjiang air port, we will pick you up. Packing & shipping
Contact
Any questions you are welcome to contact us, we will do our best to help you.

---
