Turning and Milling Center, Machine Lathe

Product Description

Product Description

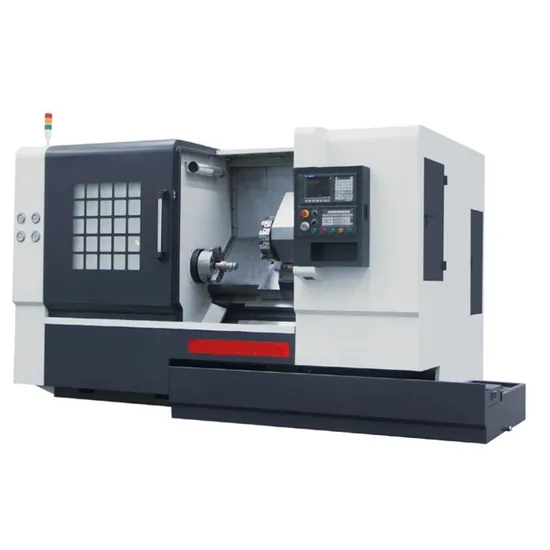

CNC LATHE INTRODUCTION
This series of machine tools are mainly designed to solve the problems of semi precision turning, precision axle and disk parts, as well as three-axis three linkage CNC Turning Center for milling outer circle, end face, keyway, drilling and tapping. The machine tool is equipped with advanced numerical control system, which not only has the functions of turning straight line, oblique line, arc (cylindrical surface, rotary surface, spherical surface, conical surface), straight and conical metric inch screw thread, but also has the abilities of milling outer circle, end face, keyway, drilling radial and axial holes and processing screw thread. It is suitable for processing various disc, sleeve and shaft parts with complex shape and high precision.
FEATURES
• One-piece bed adopts high strength iron to ensure rigidity and precision
•Slant bed design and linear guideways enqure process speed and accuracy
•Carriage and guide-way contact surface use Turcite B to maintain accuracy
Standard Accessories
Siemens controller, hydraulic turret, hydraulic chuck, hydraulic tailstock
OPTIONAL ACCESSORIES
Siemens controller, hydraulic turret, hydraulic chuck, hydraulic tailstock
Product Parameters

		SPECIFICATION	UNIT	CHY6140	CHY6150	CHY6156
		Swing over bed	mm	400	500	560
		Swing over cross slide	mm	260	350	380
Capacity		Distance between centers	mm	500/1000/1500/2000	500/1000/1500/2000	1000/1500/2000/3000
		Slant bed layout angle	°	45	45	45
		Spindle bore	mm	82	82	80
Spindle		Spindle speed steps		Stepless	Stepless	Stepless
		Spindle speed range	rpm	35-3000	35-3000	50-2500
			o	0-360	0-360	0-360
		Chuck	in	10in Hydraulic chuck	10in Hydraulic chuck	18in Hydraulic chuck
		Turret/tool post	-	8	8n	12
Turret		Tool shank size	mm	25x25	25x25	25x25
		Boring tool holder size	mm	φ32	φ32	φ4O
				0° /90°	0° /90°	0° /90°
		X axis travel	mm	180	200	225
		Z axis travel	mm	500/1000/1500/2000	500/1000/1500/2000	1000/1500/2000/3000
Feed		X axis rapid traverse	mm/min	Linear guideway	Linear guideway	Hard guideway
		Z axis rapid traverse	mm/min	Linear guideway	Linear guideway	Hard guideway
Tailstock		Tailstock quill diameter	mm	0.001	0.001	0.001
		Tailstock quill taper	-	φ80	φ8O	φ11O/12O
		Tailstock quill travel	mm	MT4	MT4	MT5
		Main spindle motor	kW	11	15	18.5
Motor		Coolant pump motor	kW	0.37	0.37	0.37
		Width x Height	mm	1800x1800	1800x1800	2050 x 2300
Dimension		Length (chip conveyor included)	mm
Weight		Net weight	T	4.0/6.5/8.0/10.5	4.0/6.5/8.0/10.5	7.0/8.0/10.5/15

---
