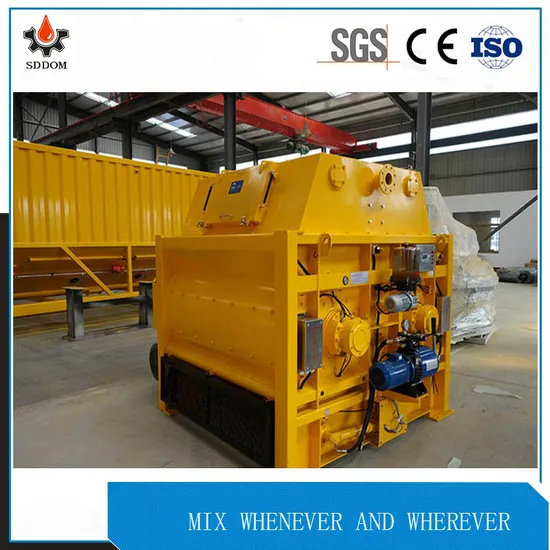

Small Size Portable Js1500 Twin Shafts Concrete Mixer for Sale

US$20,358.00 1 Piece (MOQ)

Basic Info.

Model NO.
JS1500
Shotcrete Type
Wet
Machining Process
Hydraulic
Structure
Cylinder Type
Productivity
75m²/h
Feeding Height
1400mm
Vibrating Amplitude
2.6mm
Certification
ISO9001: 2000, CE
Condition
New
Color
Orange
Charging Capacity
1250-2000L
Discharging Capacity
1250L-2000L
Motor Power
2X22kw
Mixing Time
<40s
Mixing Axle Rotation Speed
29.67r.Min
No. of Mixing Arm
16
Max.Diameter of Aggregate
60/80mm
Weight
5300kg
Lubrication Oil Pump Motor Power
0.09kw
Hydraulic System Motor Power
2.2kw
Transport Package
Standard Packing
Specification
3000x2100x2000mm
Trademark
SDDOM
Origin
China
HS Code
8474310000
Production Capacity
100sets/Month

Product Description

Small Size Portable Js1500 Twin Shafts Concrete Mixer for Sale
Parameter
Model JS750 JS1250 JS1500 JS2000 JS3000 JS4000
Charging capacity(L) 1200 2000 2400 3200 4800 6400
Discharging capacity(L) 750 1250 1500 2000 3000 4000
Production capacity(m3/h) 42 75 90 120 180 240
Mixing axle rotation speed(r/min) 29.9 29.67 26.75 23.5 23.4 22.85
Mixer motor power(kw) 2*15 2*22 2*30 2*37 2*55 2*75
Librication oil pump
motor power(kw)		 0.09 0.09 0.09 0.09 0.09 0.09
Hydraulic system
motor power(kw)		 2.2 2.2 2.2 2.2 2.2 2.2
Electromagnetism valve
power supply(V)		 DC24 DC24 DC24 DC24 DC24 DC24
Mixing time(s) <=40 <=40 <=40 <=40 <=45 <=45
No. of mixing arm 12 12 16 16 18 22
Max diameter of
aggregate(Detritus/Pebble)		 60/80 60/80 60/80 80/120 100/150 100/150
External dimensions(LxWxH) 2900x
2650x
2100		 3000x
2750x
2100		 2900x
3000x
2150		 3450x
3000x
2150		 3900x
3300x
2230		 4500x
3310x
2230
Transportation dimensions(LxWxH) 2900x
2100x
2100		 3000x
2100x
2100		 2900x
2320x
2150		 3450x
2320x
2250		 3900x
2600x
2230		 4500x
2600x
2230
Entire machine weight(kg) 5000 5300 6500 7500 9300 11800

Introduction

1.The mixing blade and lining board use wear-resisting-material. They have a long service life and they are convenient to dismantle and replace.
2.Driving device and shaft end sealing device using technical of ITALY
3.Discharging gate is controlled by hydraulic oil pump.
4.The mixer is reasonably designed with short mixing time, low consumption, low noise and long service life.
5.The air operated discharging is convenient and quick. There is a hopper, under the discharging gate, which is fit to the concrete mixing truck to make the discharging quickly.
6.The shaft bearing is apart from the shaft sealing which has six measures to prevent leakage.
7.The sealing parts are specially managed and well manufactured with a long service life and reliable performance.
Features


Packing and shipping
