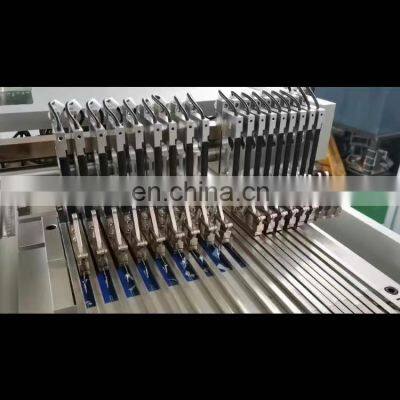

12BB 15BB 16BB Solar panel cell peel strength testing machine

Product Description

Product Description
12BB 15BB 16BB Solar panel cell peel strength testing machine The Mianly specifications The max testing force50NTesting accurate class0.5Testing force measure range0.1%—100%FSTesting indicate value relative errorwithin±0.5%Testing force resolutionthe max testing force1/±500000(whole course resolution not change) Displacement indicate relative error within±0.5% Displacement resolution 0.001mmForce control speed rate adjust range 0.1-5%FS/S Force control speed rate relative error with±1% of set value Adjustment range of cross member speed 0.05—1000mm/minCross member speed relative errorwithin 1% of set valueMaximum stretching stroke380mmThe effective testing width300mmThe appearance size(L×W×H) approx 1150*570*1100mmPower 220V 50Hz 400W The weight approx 140kg The tension angle 180±2 angle Software testing function introduce1,Load displacement curve;Load,time curve;displacement;stress,Strain curve.2,According to the requirements of various countries for test pieces, edit the corresponding test standards, fill in the sample data, edit the test methods, and make them available for future testing.3,Automatic save this time testing result, and can print out, have the formula edit function,Can compare multi testing curve.4,It can set the number of decimal places, physical quantity units and password protection.5,Automatic clear zero: When the computer receives the test start instruction, the measurement system will automatically clear zero;6,Automatic Regression: automatically identify the maximum force of the test, and the movable beam will automatically return to the initial position at high speed;7,Automatic archiving: test data and test conditions are saved automatically to prevent data loss caused by forgetting to save due to sudden power failure;8,Test process: the test process, measurement, display and analysis are completed by microcomputer;9,Display mode: data and curve are dynamically displayed with the test process;10,Structure reproduction: the test results can be accessed arbitrarily and the data curve can be reanalyzed;11,Curve traversal: after the test is completed, the mouse can be used to find out the force value and deformation data of the test curve point by point, which is convenient and practical for obtaining the test data of various materials;12,Comparison of results: multiple test characteristic curves can be superimposed, reproduced, enlarged and presented in different colors, and a group of samples can be analyzed and compared;13,Curve selection: stress-strain, stress time, strength time and other curves can be selected as required for display and printing;14,Batch test: the test of a batch of samples can be completed successively after setting the test with the same parameters;15,Test report: standard format;16,Limit protection: it has two levels of program control and mechanical protection;17,Overload protection: automatic shutdown when the load exceeds 10% of the rated;18,Emergency stop: an emergency stop switch is set to cut off the power supply of the whole machine in an emergency;19,Automatic diagnosis: the system has the function of automatic diagnosis. It regularly checks the measuring system and driving system for overvoltage, overcurrent and overtemperature. In case of any abnormality, it will be shut down immediately Test intelligence features1.The software can automatically locate and automatically run to the appropriate position of the cell according to different specifications2.Software judgment method the effective length of peak value, mean value, area and qualified value can be calculated according to the interval3.Judge whether the product is qualified according to any combination of four parameters1)Peek value qualified2)mean value qualified3)Area qualified4)Peek value+area5)Peek value+effective length4.Determine whether the whole cell is qualified according to the ratio of the qualified number of intervals divided by the total number of intervals Testing report1.It can automatically generate excel report, including data and graphics2.It can automatic according to 15BB export customer customized report3.All test data can automatically generate daily, weekly, monthly and annual reports to facilitate data statistics and analysis The pictures display: PV exhibition Certificate Cooperation clients
