US$15.00-30.00
|
1 Piece
(MOQ)
|
Basic Info.
Model NO.
HJZF1-FNPT6-8-SS
Media Temperature
High Temperature
Steel
316, A105/A350, Hc276, Monel400, Enel600/625, 2205
Pressure Range
6000psi/414bar-10000psi/690bar
Volume Size
65*85*27mm(NPT1/4)
PTFE
-54—260°c/-65.2—500°f
Graphite
-54°c to 649°c/-65°f to 1200°f
Specification
382g(NPT1/4)
Production Capacity
42000pics/Yr
Packaging & Delivery
Package Size
25.00cm * 25.00cm * 22.00cm
Package Gross Weight
2.450kg
Product Description

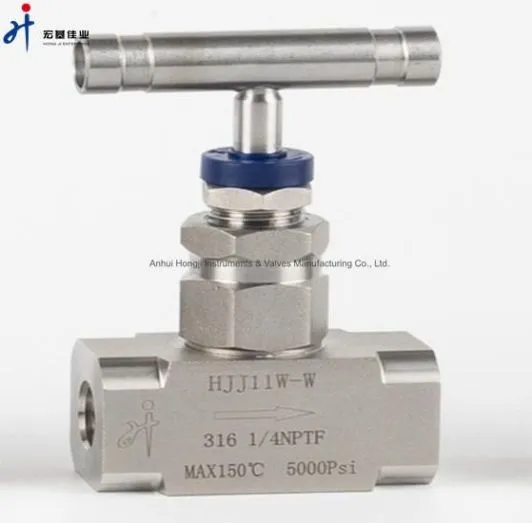

Product Description Needle Valves
The needle valve made by Hongji Instrument& Valve Manufacturing Co., Ltd. is a type of valve with a small port and a threaded, needle-shaped plunger. It allows precise regulation of flow, They are also usually used in flow-metering applications, especially when a constant, calibrated, flow rate must be maintained for a certain duration, such as the idle fuel flow in a carburetor, steam in the pipe from the power plant, as well as to provide shut off for the pressure gauge or on applicators in many industries.
1. Needle Valve Features& Applications:
Accurate& Precise control flow rate and pressure. Provide reliable cutoff. Precise adjustment of flow, bearing resistance, and pressure regulation. It also can be used in pump start, turbine by-pass, flow discharge, air regulation, and Reservoir inlet. Small Size. 2. Variety of Needle Valves( Manually Operated, Forged Stainless Steel): Inlet/Outlet: Straight type, Tee Type, Elbow Type, Y type 3. Needle Valve General Data: Pressure Range: 5000Psi-15000Psi(344Bar-10343Bar) Working temperatures: -54°C-649°C (-65°F-1200°F) Size:1/8''-1''(NPT), DN6-DN20, Connection: Dual Ferrules, Flange, Thread, Welding. Application: Liquid or Gas, Steam, Water Body Material:304, 316,316L, 321, Alloy, HC276, Monel400, Enel 600/625, 2205(S31803), 2507 4. Industrial Application Oil& Gas Power Plant Nuclear Energy Petrochemical Chemicals Water Treatment Semi-Conductor Food& Beverage Detailed Photos
Type | Needle Valve | Net Weight | 382g(NPT1/4) |
Body Material | 316, A105/A350, HC276, Monel400, Enel600/625, 2205(S31803), 2507 | Manufacturing Capacity | 5000/Month |
Type of Connection | Female Thread | Warranty | 1 year |
Seal Type | Hard Sealing | Norms | ISO/GB/JB/DIN |
Manufacturing | Forging and CNC | Test Norms | API 598/ GBT-13927-2008 |
Application | Nontoxic Liquid or Gas, Steam, Oil | Certificate | ISO/TUV |
Pressure Range | 6000psi/414bar-10000Psi/690bar | Manufacturing Standard | GB/T12224-2005 JB/T7747-1995 |
Volume Size | 65*85*27mm | PTFE | -54-260°C/-65.2-500°F |
Size Range | NPT1/4-NPT3/4 | Graphite | -54°C to 649°C/-65°F to 1200°F |
Company Profile Background
FAQ 1. Can I get a Sample?
We do provide some small specific samples accordingly based on the process we situate in.
2. Do you provide customized products?
We are good to offer customized services in terms of logo labeling, manufacturing based on samples or blueprints, etc.
3. Will communication be a problem?
Our sales team had great knowledge of our products and acquired solid English communication skills in both written and speaking; the communication can be accessed either literally or verbally via any social networking platform.
4. Payment Method.
L/C, T/T, PayPal, Western Union, etc. Principally we do not accept third-party transactions via China's mainland region channel.
5. Why Choose us?
Quality: 100% leakage, material, and functionality test in process and before shipping. Variety: Highly customizable flexibility. Reliability:15 years of manufacturing experience. Efficiency: Quick& Effective response. Utility: Direct link from Manufacturer. Flexibility: OEM/ODM are provided. Authentication: Real-time plant audit provided. Competitiveness: Price is negotiable on large volumes.
>>
