Medical Customized Automatic Sliding Aluminum Honeycomb Industrial Smart Digital Touch Screen Electric Cleanroom Door Forpharmaceutical/Hospital

Product Description

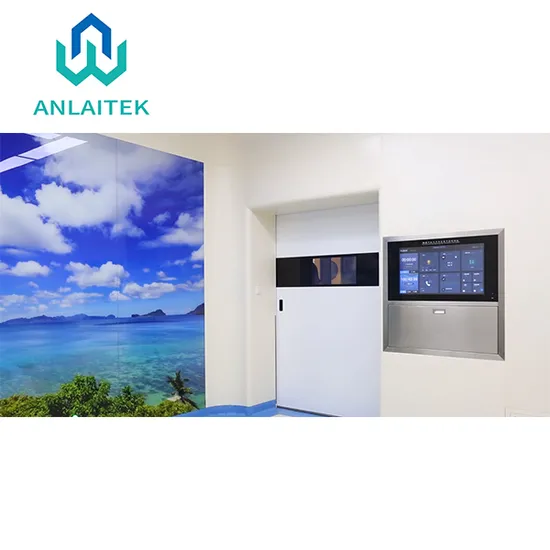

Digital Touch Screen Electric Door
Features
1. The door is equipped with an digital touch screen, which can be connected to the intelligent control panel, nurse station, and automatic door controller. It can display information related to the intelligent control panel, surgery schedule, information of doctor&patient, etc.
2. The automatic door parameters can be adjusted on the touch screen. According to the operation status, the intra-operative prompt interface can be automatically switched. The operating room number can be adjusted on the secondary screen.
3. It has good thermal insulation , sound insulation performance and antibacterial performance.
4.The control system is safe and reliable, with complete protection measures. The door can be opened and closed manually when the power is off. The control device can withstand 1250V 50HZ/60HZ voltage when powered, and there is no breakdown or flashover within 1mim.
5.It can automatically identify obstacles and automatically rebound when encountering obstacles. The unit will suspend operation if it hits an obstacle three times in a row. It will automatically return to normal after the obstacle is removed.
6.The door can be connected to a smart access card, it also has a remote control function and can be controlled and opened through the nurse station. Provide network interface and adopt OPC open communication protocol.

Specification

Product name	Digital touch screen automatic door
Color	As shown below or customized color
Door panel thickness	40mm door panel
Door Filler	Aluminum Honeycomb
Air tightness	Positive pressure	Negative pressure
	National Standard Level 8 (+q1=0.13M3//(m.h),+q2=0.33M3//(m2/.h))	National Standard Level 8 (-q1=0.18M3//(m.h),-q2=0.45M3//(m2/.h))
Wind resistance	P3'=2000Pa,Pmax'=3000Pa
Heat transfer coefficient	0.794W/m^2K
Sound insulation index	Rw(C;Ctr)=30(-1;-2)db
Escherichia coli antibacterial rate	>99.99%
Staphylococcus aureus antibacterial rate	≥99.82%
Service life	Not less than 500,000 times
Door opening and closing speed	250-550MM/S (adjustable)
Door opening hours	2-20S (adjustable)
Door Motor	Japanese Door Motor

Product Details
_________________________________________________________________________________________________________

Main Products
_________________________________________________________________________________________________________
Packing and Delivery
_________________________________________________________________________________________________________
Company Information
_________________________________________________________________________________________________________
Guangzhou Anlaitek Clean Technology Co., Ltd. is located in Nan Shuang Yu Industrial Zone, Shatou Street, Panyu District, Guangzhou, covering an area of 20,000 square meters. It is a A high-tech manufacturer of medical cleanroom doors,cleanroom windows, cleanroom air filers, modular operating room wall panels, and operating room stainless steel equipment, integrating R&D, production, sales, and installation services of cleanroom products.
