The Parking Sensor System for Large Vehicles
Intelligent Rear Obstacle Detection & Safety Solution
Product Overview
Designed for large engineering vehicles, this advanced Parking Sensor system solves blind spot challenges through real-time obstacle detection. Featuring an LED visual display and audible alerts, it enables drivers to intuitively monitor rear obstacles within 8 meters for safer reversing operations. The system offers rapid response, military-grade durability (-40°C to +80°C), and industry-leading environmental adaptability.

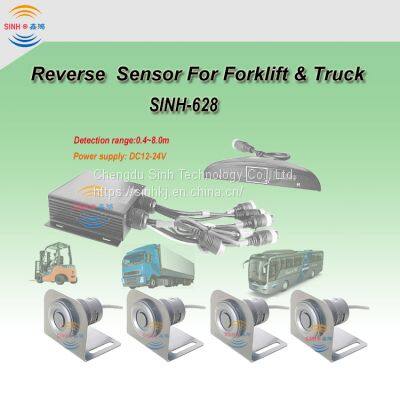

Key Components
Main Control Unit: 1x SINH-628 Host
Visual Interface: 1x LED Distance Display
Detection Sensors: 4x 27T Ultrasonic Sensors
Certification: Compliant with international automotive safety standards
Technical Specifications
Voltage: DC 12-24V
Power Consumption: <5W
Detection Range: 0.4-8.0m
Accuracy: ±0.1m resolution
Sensor Coverage: 60°±20° per sensor (360° total protection)
Environmental Rating: IP67 waterproof, shock/vibration resistant
Core Features
Real-Time Distance Monitoring
Visual LED display with numeric distance indicators
Progressive audible alerts ("beep-beep" to continuous tone)
360° Protection
Quad-sensor array pinpoints obstacle location (left/center/right zones)
All-Weather Reliability
Operates in extreme temperatures (-40°C to +80°C)
Resists water, dust, and electromagnetic interference
Auto-Start Convenience
Activates automatically with vehicle ignition
Installation Guidelines
Sensor Positioning:
Mount sensors ≥85cm above ground to reduce false alarms
Avoid protrusions near sensor areas (use brackets if required)
Wiring Requirements:
Use factory-included twist-lock extension cables
Ensure proper sensor alignment and secure fastening
Ideal For:
Mining trucks, construction vehicles, buses, and other large equipment requiring enhanced reversing safety.
Installation instructions：
Item
| Character
| Specification
|
1
| Sensor size
| Φ27mm
|
2
| Working frequency
| 58KHz
|
3
| Detect distance
| Max 800cm
|
4
| Sensors
| 4
|
5
| Sensor directional characteristic
| Horizontal distance 60CM 110°±20°, Vertical distance 60CM 40 °±20
|
6
| Electromagnetic compatibility level
| B
|
7
| Waterproof properties
| IP67
|
Item
| standard content
| Parameter
|
1
| Rated Voltage
| DC12- 24 V
|
2
| working voltage
| DC12- 24 V
|
3
| Sensor working voltage
| DC 6-18V
|
4
| working current
| 100mA MAX
|
5
| Working Temperature
| -30 ~ +80 ℃
|
6
| Storage Temperature
| -40 ~ +85 ℃
|
7
| waterproofing grade
| IP69
|
8
| Detection Method
| Direct/indirect detection
|
>>
