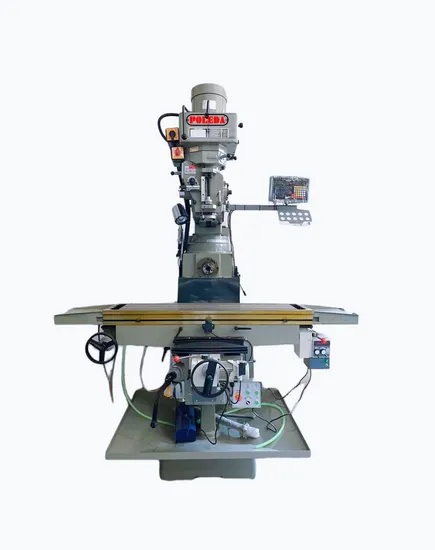

6h Vertical Horizontal Nt40 Spindle Universal Milling Machine Factory Price Direct

Product Description

Product Description
Characteristics of Vertical and Horizontal Milling Machines
Innovative Variable Spindle Axis Direction: Our state-of-the-art vertical and horizontal dual-purpose milling machine features a versatile spindle axis that can be adjusted to meet diverse processing requirements. This adaptability ensures seamless transitions between different processing scenarios, significantly enhancing overall efficiency.
Unmatched Power and Versatility: The ability to modify the main shaft axis direction endows our vertical and horizontal milling machine with unparalleled versatility. Capable of processing workpiece surfaces at a myriad of angles relative to the horizontal plane, this machine tackles a broader spectrum of processing needs with ease.
Exceptional Adaptability: Engineered for complex processing tasks, our vertical and horizontal dual-purpose milling machine excels in plane processing, intricate surface contouring, and special angle applications. The adjustable spindle axis direction ensures it meets every challenge head-on.
Enhanced Production Efficiency: By seamlessly altering the orientation of the main shaft axis, our vertical and horizontal milling machine enables multi-surface processing with a single setup. This innovation drastically cuts down repositioning time, unleashing higher production efficiency.
User-Friendly Operation: Despite its robust capabilities, operating our vertical and horizontal milling machine is remarkably straightforward. Users can effortlessly toggle between vertical and horizontal modes to suit varying processing requirements, ensuring a smooth and intuitive experience.
Product Parameters
Structural Characteristics of Vertical and Horizontal Milling Machines
1. Bed Structure
Our milling machine's bed is crafted with a robust double-column design, delivering exceptional strength and rigidity for unmatched precision and stability. A built-in sliding bed accommodates the table and spindle's weight, effectively minimizing vibration and noise for smoother operations.
2. Workbench Structure
The workbench, a critical component of our milling machine, securely anchors the workpiece. Designed with a convenient T-slot for easy clamping, it offers dual-directional movement-both horizontal and vertical. Additionally, its rotatable feature simplifies bevel machining, enhancing versatility.
3. Main Shaft Structure
Our milling machine's spindle offers vertical or horizontal configurations, equipped with a versatile clamping system that supports either chuck or tool handle. Boasting high speed and torque, it meets all machining demands. An integrated cooling system ensures optimal tool and workpiece temperature regulation.
4. Feed System
An integral part of our milling machine, the feed system comprises a feed shaft, servo motor, and guide rail. It expertly manages tool movement in both horizontal and vertical planes, facilitating diverse machining operations. The servo motor offers precision control, while the guide rail guarantees system stability and accuracy.
5. Structural Advantages
Our vertical and horizontal milling machine is lauded for its compact, powerful structure, broad application range, high precision, and advanced automation. It delivers efficient processing, minimizes manual intervention, and optimizes both time and cost efficiency.

Product name	Vertical and horizontal milling machine
Product model	6HV
Product technical parameters
dimension	Table size	1372*330MM
	Table load	350KG
journey	Left and right travel (X)	1000MM
	Forward and backward travel (Y)	420MM
	Up and down travel (Z)	380MM
Vertical spindle coefficient	Spindle taper	NT40
	Distance from spindle to table	150-530MM
	Spindle speed	80-5440RPM
	Spindle lift stroke	127MM
	Spindle horse power	5HP
	Arm reach	600MM
Transverse spindle coefficient	Horizontal shaft motor power	2.2KW
	Transverse spindle speed	60-1320RPM
	Transverse spindle taper	NT40
	Transverse spindle travel	120
	Bracket center height	230
Machine profile dimensions	T-slot (width * Slot number * slot distance)	16MM*3MM*65MM
	Milling head tilt Angle	45 front/back side
	Machine size (L * W * H)	2200*2000*2500MM
	Approximate machine weight	2500kgs
	Accessories name and specification	quantity
Standard parts for machine tools	1.Hand oil pump	1
	2.Work light	1
	3.Organ board + protective glue	1
	4.Vertical NT40 tie rod, horizontal NT40 tie rod	1
	5Tools and toolboxes	1

Special parts for machine tools	6.Two axis electronic ruler	1
	7.X-axis automatic feed	1
	8.6 "flat pliers	1
	9.58 piece composite platen	1
	10.NT40 cable nozzle	2
	11. Operation instructions	1
	12.Z axis lifting motor	1

Detailed Photos
Our Advantages
Certifications
FAQ
1.What is the MOQ for your production?
A.The MOQ depends on your requirements for color, logo and so on.For some normal items, we have in stock, the MOQ is 1 set.
2.How to control the quality of the products?
A.We have always placed great emphasis on the quality level is maintained.Moreover,the principle we always maintain is "to provide customers better quality, better price,and better service".
3.What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Machine, Lathe Machine , Milling Machine,Grinding Machine ,Vertical Machining Center ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine and so on .
4. What is your trade terms?
A :Ex-works FOB, CFR and CIF all acceptable.
5.What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
6.What CNC system do you use?
A:FANUC, SIEMENS, MITSUBISHI, SYNTEC, HCN .It depends on your choice.
7.How can I choose the most suitable machines?
A:Send us the products drawings and applications ,we will choose the most suitable machines for you.
8.what kind of package do you offer?
A.Normally in plywood case, to make sure all goods in good condition. Customized package can be acceptable.
9.Can your plant do OEM?
A:Yes it is no problem. We can do OEM and ODM for any customers.
10.How about the warranty?
A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for mac.

---
