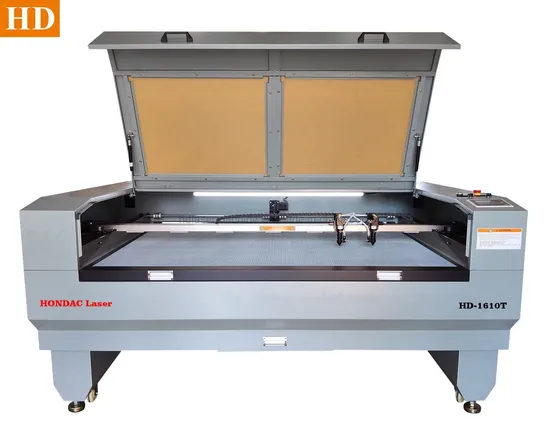

80W 100W 130W Reci Efr Yongli Tube Cloth Textile Fabric Foam Plastics Acrylics Paper Garments Shoes Handbag Gifts CO2 Laser Machine

Product Description

Machine Feature:
1. The machine body applied with most solid design which can ensure no deformation long time operation and transportation.
2. The machine fixed with LEADSHINE brand stepper motor and driver, inner guide running system.
3. Adpots with adanced DSP control technology, fixed with high quality electronic parts, ensure high cutting engraving speed,
high accuracy and high stability, long time usage life.
4. Applied with imported lens and reflector mirror, ensure high laser power efficiency.
5. The machine connect with computer by USB/ INTERNET wire or U disk directly.
6. With water cooling system, exhaust fan and water pump, etc.
7. It have cutting and engraving function, it have half-cut function.
8. Machine size: L x W x H = 220 x 160 x 115 cm
MACHINE FRONT SIDE AND BACK SIDE
Laser cutting machine specification:

Model		HD-6040	HD-9060	HD-1080	HD-1390	HD-1410	HD-1610	HD-1810	HD-1612
Laser source	Wave Length(µm)	10.6
	Optional Power ( w )	60w, 80w, 100w, 130w, 150w
	Cooling	Water Cooling
Working Para.	Working Area ( mm )	600X400	900X600	1000X800	1300X900	1400X1000	1600X1000	1800X1000	1600X1200
	Min. Line width( mm )	0.15 ~ 0.3
	Working speed ( mm/M )	0 ~ 36
	Repeat precision (mm)	±0.05
	Compatible format	PLT, DXF, AI, DST, DSB, JPG, BMP, GIF
Power		AC220V ± 10%, 50/60HZ
Dimension (cm )		135X100X115	150X120X115	160X140X115	190X150X115	200X160X115	220X160X115	240X160X115	220X180X115
Net Weight/ Gross weight ( kgs )		240/320	270/360	300/400	350/500	400/550	450/600	500/650	550/700
Working environment		0 ~ 40ºC, clean and no-dust room, without water
Others	total power(w)	<1500
	protection class	IP54
	Laser safety class	4 class

MACHINE DETAILS
Applicable industry:
Advertising, signage, gifts, garments, shoes, bags, curtain, model, home furnishing, decoration, label, electronical etc industry,
Suitable materials:
acrylics, wood, paper, bamboo, fabric, cloth, leather, shoe bottom, woollen, plastic, ABS, resin, ceramic, and other nonmetal materials.
MAIN MACHINE ACCESSORY

FACTORY INDRODUCTION:
Professional laser machine factory, have more than 10years experience in production of laser equipment.
Applied with high quatiy spare parts, with strict requirement of installation, tuning and testing, that make sure every machine set stabl, long time usage life.
We supply full series of laser cutting machine, CO2 marking machine, fiber marking machine etc.
Aftersales service
1. Whole set machine with 1 year warranty, except consumable parts as laser tube, lens etc.
Lifelong maintainance and repairing support service.
2. Profesional technical team support by email or online timely, free software update.
3. If need, we can send technician to cuostomer local place to supply service and support.

---
