10/90, 20/80, 30/70, 40/60, 50/50 Split Ratios 1X2 Fbt Optical Coupler with Sc/Upc Connector

Product Description

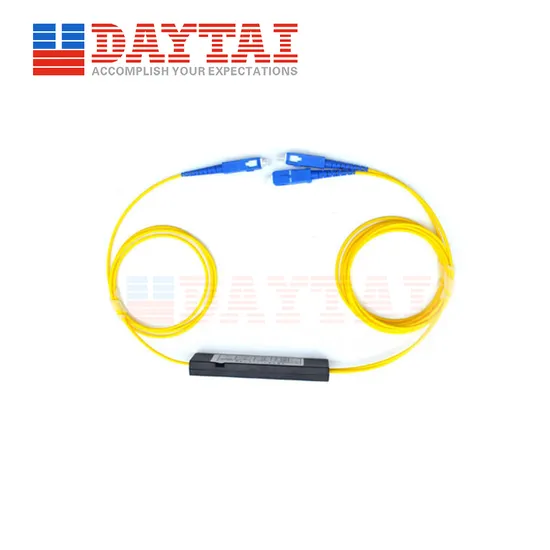

10/90,20/80,30/70,40/60,50/50 Split Ratios 1X2 Fbt Optical Coupler with SC/UPC Connector
Product Description
★Description
1x2 FBT Optical Coupler,Mini ABS Type,SM,Wavelength:1310/1490/1550nm,input and output length 1M Pigtail With SC/UPC Connector.Optical Split Ratio:50%+50%,90%+10%,80%+20%,
30%+70%...is optional.
★Features
⊙FTTH
⊙Reliable
⊙Monitoring
⊙Smaller size
⊙CATV System
⊙Good Uniformity
⊙Network Protection
⊙Low Polarization loss
⊙Access/PON Distribution
⊙Not Sensitive to wavelengths Product Parameters
★Optical performance
Test can be performed on any channel to meet the following requirement:

Category		Specification		Remarks
Working Wavelength		NM	1260~1650
Test Wavelength		nm	1310&1490&1550
Insertion Loss	exclude connector	dB	≤4.0
	With connector	dB	≤4.3
Channel Uniformity		dB	≤0.6
Polarization Dependent Loss-PDL		dB	≤0.2
Directivity		dB	UPC≥50;APC≥55	With connector
Return Loss		dB	UPC≥50;APC≥55	With connector
Operating Temperature		ºC	-40~+85

Detailed Photos

---
