| US$16,000.00-27,000.00 | 1 Piece (MOQ) |
| Water cooling, make the work more stable Chose industrial water chiller, Easy installation and maintenance and energy-efficient.Machine come with water chiller, make sure long time working time. High power & Convenience: This machine come with higher power, faster cleaning speed. Equipped with ergonomic handles and high quality wheels that allow for easy steering and direction changes. | |
| Double Red Light independent development high speed Galvo Strategic cooperation with ZBTK, adopting self-developed double red light design for higher stability. Easy to find the focal point, so that the cleaning efficiency is more efficient. | |
| JPT laser source The Geput CL series is a high power fiber laser using a direct electrically modulated semiconductor laser as a seed source (MOPA) solution, with perfect laser characteristics and good pulse shape control ability, using a lightweight laser output head, while maintaining the excellent performance of laser anti-high reaction, which has outstanding advantages in laser cleaning. | |
| Powerful software,support 25 language switching With 25 languages and user-defined process parameters, users canquickly select welding parameters according to different materials andthicknesses.The operation is simple and faster, saving novice trainingand production costs. | |
| Better cleaning effect 8 cleaning modes optional Supports 8 cleaning modes, which can be applied to many kinscomplex cleaning scenarios. Support slow rise and slow drop of laserpower real time control, better cleaning effect, no damage to the sub.strate. | |
| 2 years warranty 2 years warranty The machine come with 2 years warranty, stable and high cost-effective. Amachines use famous brand parts, with strict quality inspection. LME lasermachine. customer's best choice. welcome the masses of customer to trust to purchase. |
| No. | Parameter Name | Description |

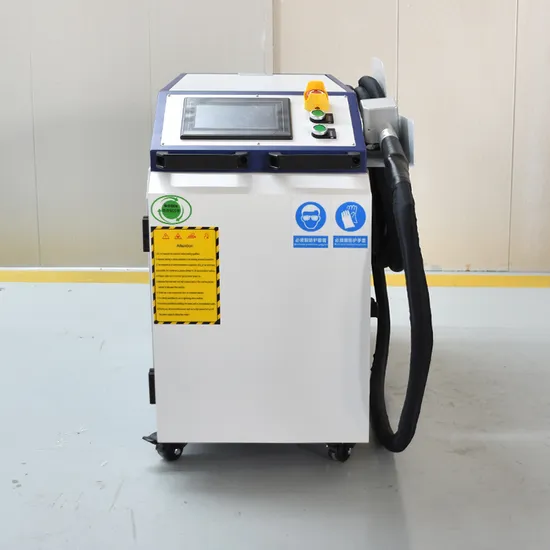

| 1 | Product Name | Pulse fiber laser rust removal machine |
| 2 | Laser power | 500w/1000W |
| 3 | Wavelength type | Pulse |
| 4 | Power stability | better than 5% |
| 5 | Power adjustment range(%) | 10-100 (gradient adjustable) |
| 6 | Repetition frequency(KHz) | 20-200 (gradient adjustable) |
| 7 | Fiber length | 10m |
| 8 | Cooling method | Water-cooling |
| 9 | Scanning range | 8mm ~ 120mm , Continuously adjustable |
| 10 | Focal length of field lens ( mm ) | 160mm (Optional 160mm-500mm ) |
| 11 | Depth of focus | max 10mm |
| 12 | cleaning head weight | about 1kg |
| 13 | voltage | 110V/220V 50Hz/60Hz |
| 14 | working temperature | 5ºC~ 40ºC |
