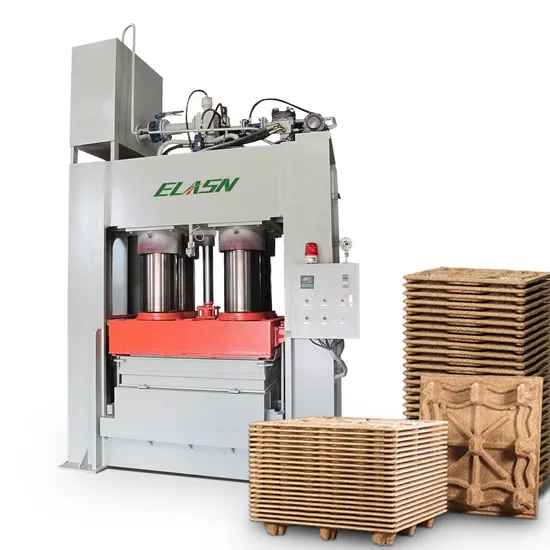

High Efficiency Compressed Wood Pallet Making Machine Presswood Pallet Hidraulic Moulding Press Machine Sawdust Wood Pallet Compressed Hot Press Machine

Product Description

Product Description
The compressed wood pallet machine is used for pressing and forming wood chips, straw, waste chemical fiber and other raw materials.There is an independent hydraulic system in this equipment.
The compressed wood pallet making machine has the advantages of good stability performance,high efficiency,and energy saving.What is more,the compressed wood pallet is fumigation free and no limit for international transportation.
The press machine can use both the steam and the thermal oil as heating source.
The pallet press machine is very convenient for installation and do not need basic positioning.You can produce different wood pallet size and pallet design by changing the mold.
The pictures of wood pallet making macine different molds :
Product Parameters

Model	ELA-800T
Pressure	800T or customized
Main cylinder	Φ320,4 sets
Pilot oil cylinder	Φ100,1 set
Lift cylinder	Φ100,2 sets
Main motor power	7.5KW
Press stroke	550mm
Capacity	130-160Pcs/Day
Mold type	less than 1300*1250mm or customized
Heating type and capacity	Steam or thermal oil,0.15 Cubic metre
Machine size	2300*1500*4300mm
Machine weight	12700kg

Product Features
Features of our compressed wood pallet making machine :
1.Our wood pallet machine has a good structure ,it use the three-way synchronous positioning,precision and balance,the pressurize will be soon when filling ,the pressurize will be fine within 35 seconds.
2.It is easy to operate ,just press the work button,then the machines will complete the whole process automatically.
3.It needs about 450 seconds to molding a tray .
4.The machine can produce about 130-160 PCS pallet per day .
5.The density of the pallet is about 900kg per cubic meter.
6.The machine can be customized.
Whole Production Line
One completed pressed wood pallet line includes press,wood chopper,dryer,glue mixer,storage tank etc. The production lines has been proved to be stable,high efficiency,low energy consumption,can manufacture the pressed wood pallet with higher loading capacity and reduce the defective rate to 0%.
We also supply the mould sets which can be easily replace or change, can produce different type of the pressed wood pallet. Fully Automatic loading and take out equipment supplied as per request. Field installation service.production guidance and labor training available as well.
The whole compressed wood pallet production line :
Raw materials
The compressed wood pallet making machine mainly use the Bamboo shavings, wood sawdust, wood shavings, scrap materials as main raw materials.
End Products of Compressed Wood Pallet Machine :

Our Factory

Company Profile
Henan Elasn Machinery Equipment Co., Ltd is located in Zhengzhou, central area of China, a traditional industrial city with rich culture and history. Away from Xinzheng international airport only half an hour, also have train to every main city of China.
"Business integrity, Quality first" is our principle. Our company is equipped with a professional team of quality control and after-sales service members to keep track of each order scientifically, so as to provide high-speed services for customers.
"To provide a design, production, quality control, inspection, testing, sales and logistics service to companies that need a reliable supply of wood machinery from China."
All members of ELASN welcome new and regular customers to contact us to build long-term and friendly relation of cooperation! We will strive to produce more quality products for you!
Packaging & Shipping
After Sales Service-The main machine has 12 months guarantee and the electric elements have 6 months warranty.
- We respect any feedback from you after receiving the goods.
- We promise all spare parts available in lifetime use.
- We handle your grumble within 48 hours.Technical Support- We have sales teams, together with all technical support from our engineering team.
- Before sending machines, test and adjustment service are provided.
- Operating video & instruction will be sent to clients for better use of machines.
- Any problems occur while using, professional advice will be given by us.
FAQ

Q1: What's your factory MOQ and best price?
A1: No MOQ and 1 set machine order is also welcomed. We usually quote FOB Qingdao price, but if you want to know the other price term, we will try our best to meet with your demands.
Q2: This is the first time I use this kind of machine, is it easy to operate?
A2: There is English manual that show you how to use machine. If you still have any question,please contact us by e-mail / skype/ phone / whatsapp /trademanager online service.
Q3: Is it difficult to maintenance the machine?
A3: If your company have a technician, then with our guiding videos, then it's not difficult we think, our other customers can handle by themselves, we think you also can.
Q4: How to install?
A4: We adjusted machines well before we delivery. When customers receive them, you can work with them directly.
Q5: What to do if the machine has a problem?
A5: 24 hours timely response of mail and phone calls. If the parts broken belong to non-artificial factors within 12 months, we offer free replacement. If beyond 12 months, customers should bear the freight back and forth and accessories cost.

---
