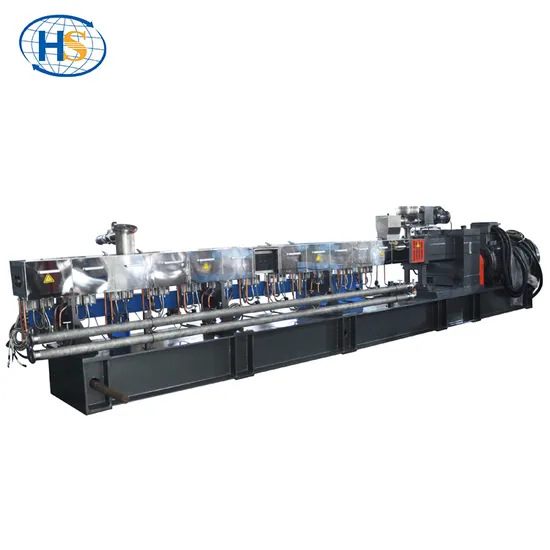

Plastic Extruder Machine for Make Plastic Pellets and Granules

Product Description

pvc compound extruder
For pvc granules making, Haisi Extrusion provides several PVC compound extruder to meet your various requirements.
Conical twin screw design PVC compound extruder
SJSZ conical twin screw extruder is mainly used for processing PVC products, such as PVC pipes, profiles, sheets, pellets and films.
SJSZ series pvc compound extruder have a high specific output rate because of screws' proper geometry, especially the longer pre-heating zone.
Technical parameters of PVC compound extruder

Model	Screw diameter mm	Screw speed r/pm	Maximum extrusion rate kg/h	Main motor power kw	Heating power kw
SJSZ-55/110	55/110	40	180	30	20
SJSZ-65/132	65/132	40	250	37	28

Two stage PVC compound extruder
PVC very easily degrades at high temperatures (more than 170ºC). SP series tandem extruder is specially designed for PVC compounding.
1.The first stage is TSE twin screw extruder without die. Through the combination of barrel and screw, the extruder can exert its strong ability to make the thermo sensibility material like PVC melting, compounding, dispersing and decentralizing under the condition of no back pressure.
2.The second stage is SJ single screw extruder. Because of the lower rotating speed, it can complete melting, compounding lengthways and forming srands steadily, avioding over heating.
Technical parameters of SP series PVC compound extruder

Model		Screw diameter	L/D	Rotary rate	Motor power	Output
SP50-120	TSE-50	50.5mm	24-48	500r/min	37-45kw	150-300kg/h
	SJ-120	120mm	7-20	65-85r/min	30-37kw
SP65-150	TSE-65	62.4mm	24-48	400-500r/min	55-75kw	200-500kg/h
	SJ-150	150mm	7-20	65-85r/min	37-45kw
SP75-180	TSE-75	71mm	24-48	400-500r/min	90-110kw	300-600kg/h
	SJ-180	180mm	7-20	65-85r/min	45-55kw
SP95-200	TSE-95	93mm	24-48	300r/min	160-220kw	500-1000kg/h
	SJ-200	200mm	7-20	85r/min	90-110kw

Processing of two stage air cooling PVC compound extruder
Features:
Combine the high speed and extensive mixing of processing and the low speed, low temperature, and low shear of single screw processing;
Ideal for compounding of heat and shear-sensitive materials.
Application:
PVC compounds for cable, shoe sole, transparent container, and medical applications.
Counter-rotating twin screw design PVC compound extruder
Our Counter-rotating Twin Screw Extruder is especially designed for PVC.
Possible materials : UPVC, CPVC, Medical grade PVC, Soft PVC, Rigid PVC, etc.
Features:
1. Unique screw design to achieve higher plasticizing and products quality
2. Gearbox of high torsion balance to realize stable running, low oil temperature available
3. H shape frame to decrease vibrating
4. PLC (Simatic Multi Panel) operation panel to ensure synchronization.
5. Energy conservation, easy to maintenance
Nanjing Haisi Extrusion is well experienced in twin screw extruder manufacturing. We supply high quality PVC compound extruder acorrding to your different requirements. Any interest please feel free to contact us!

---
