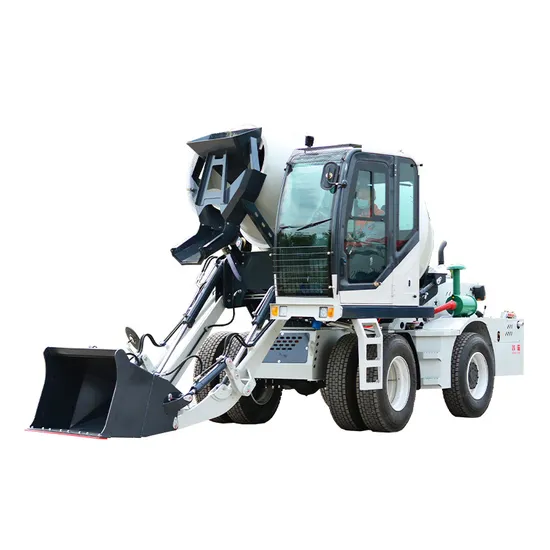

Compact Self-Loading Mixer with 1000L /Easy Operation Concrete Mixing Machine/Wheel Truck Mixmaster/Hot Sale Blender with Bucket/Engineering Vehicle Agitator

Product Description

Product Description
Automatic feeding and mixing truck, a variety of functions in one of the construction machinery equipment, automatic feeding, automatic mixing, automatic transportation, to solve a lot of labor costs, to achieve the highest efficiency and maximize profits.
As long as sufficient concrete raw materials are prepared in the early stage of the construction site, the self-feeding mixer can be made on site, from feed to discharge are fully automatic, the fastest only takes a few minutes to complete all the work of loading and discharging, which greatly improves the work efficiency, and is not limited by the site, and can be quickly transported to the destination.
The self-loading concrete mixer can complete the mixing and transportation of on-site concrete at the same time, which is not only widely used in various civil and public construction projects, but also plays a great role in the infrastructure construction of subways, Bridges, rural cities and remote places.
Product Parameters

Equipment type	18B	24B	28B	40B	45B	55B
Actual output	1.8M³	2.4M³	2.8M³	4M³	4.5M³	5.5M³
Engine type	YUNNEI 490 pressurized	YUNNEI 4102 pressurized	YUNNEI 4012 pressurized	YUCHAI 4105 pressurized	4108 Supercharging	6105 Supercharging
Power/horsepower	58kw/78hp	76kw/103hp	76kw/103hp	85kw/116hp	/	/
Bucket capacity	0.4M³	0.5M³	0.5M³	0.6M³	0.5M³	0.8M³
Torque converter type number	265 in one	280 in one	280 in one	315 split	315 split	315 split
Quality of service	4500KG±	6200KG±	6500KG±	8200KG±	8800KG	10740KG
Unloading height	<1.5M	1600MM	1700mm	1800MM	/	/
Hydraulic system capacity	/	75L	75L	75L	160L	200L
Standard wheelbase	/	2.5M	2.6M	2.6M	3M	2.9M
Driving form	4X4				Four-wheel drive	Four-wheel drive
Steering form	Articulated type				Hydraulic power steering
Maximum formal velocity	35KM/H
Minimum turning radius	3.5M	3.5M	3.5M	5M	/	/
Maximum climb height	35°				30°
Drive axle	Wheel side double brake clamp reduction bridge	Double wheel brake clamps increase and increase the reduction axle		Double brake clamps on large wheel sides reinforced cast steel bridge	/	Special bridge for 20T mixer truck
Tyre type	23.5/70-16 Wire high pressure	23.5/70-16Wire high pressure	16/70-20 wire high pressure	12R22.5 wire high pressure vacuum double row	1200R22.5 Front tires	1200R24 front tires
Gear position	Double high and low speed				4 forward 4 backward	4 forward 2 back
Water supply mode	Time relay				Timed water, Automatic quantitative water
Transport length	5350MM	5400MM	5400MM	6600MM	6800MM	6560MM
Transport width	1800MM	2650MM	2650MM	2850MM	2850MM	3000MM
Transport height	2900MM	2850MM	2950MM	3150MM	3180MM	3600MM
Tank capacity	600L	750L	750L	850L	750L	1000L
Parking mode	Cutoff brake	/	/	/	Cutoff brake
Turning platform	/	270° rotary split slewing bearing

Major Component
Product Feature
Detailed Photos
Company Profile
Hymaron Engineering Machinery Co.,ltd is engaged in bringing the most suitable solutions/equipments for client, fabri-CATors, EPC/C companies on pipe fabri-CATion, tank construction, pipeline construction,industrial production lines, clean energy project and other industrial field.
Our Services & Strength We have ability of providing workable solutions to support clients to be awarded with shorter project execution time, fewer man-hour cost and higher efficiency construction/fabri-CATion method and better quality during phase of project bidding.
Based client's facility/site space availability, we are able to study/design and present matched configurations on project schedule, quality, cost and productivity to guarantee production pace is accordance with project requirement.
To support project execution, we are always ready to work as fireman to give prompt supply on project materials from different consumables, tools, equipments/machines to special merchandise. With flexibility, we are also glad to perform as procurement agent in China to seek required supply resources.

---
