Product Details
Product Description
Product Description

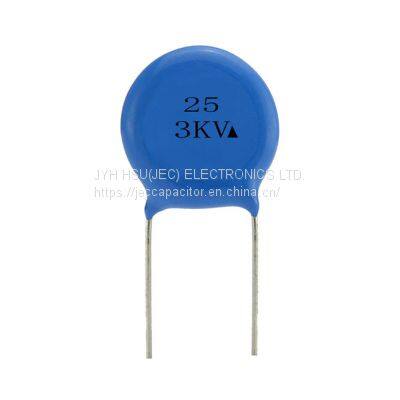

25 3KV Ceramic Capacitor super high voltage ceramic capacitor High Voltage Ceramic Capacitor 25 3KV
Product features:
Low loss, high capacity stability, linear change in capacitance and temperature, multiple temperature coefficients, multiple temperature levels
Electrical characteristics:
Technical requirements reference Standard
| GB/T 2693-2001 ; GB/T 5966-1996
|
Rated Voltage(UR)
| 50 / 63 / 100 / 250 VDC
|
Capacitance Range
| 0.5pF to 10000pF,100pF to 10000pF
|
Withstand Voltage
| 2.5UR(DC)
|
Capacitance Tolerance
| ±0.25pF(C), ±0.5 Pf(D), ±5%(J),±10%(K ),Y5P±10%(K ) ; Y5U ,Y5V±20%(M) ; Y5V+80/-20%(Z)
|
Quality Factor (Q)
| C<30pF:Q≥400+20C ; C≥30pF:Q≥1000
|
Dissipation Factor (tgδ)
| tgδ≤2.5%
|
Insulation Resistance(IR)
| IR≥10000MΩ
|
Operating Temperature Range
| -25℃ to +85℃
|
Temperature Characteristic
| NPO,N750,SL,Y5P,Y5U,Y5V
|
Flame Retardant Epoxy Resin
| UL94-V0
|
Jec High Voltage Ceramic Capacitor Application Area :
1. Apply to resonance circuit and temperature compensation effect circuit.
2. Apply to bypass or coupling circuit. Also apply to those vibration frequency circuit with not too high requirement for low frequency loss and capacitance stability performance.
Matters Needing Attention:
1. Do not store the capacitor in corrosive gas, especially in the presence of chlorine, sulfur, acid, alkali, salt, moisture, etc.
2. The storage temperature and the relative humidity should not be too low or too high.
We Are Provide Safety Capacitor and Cheap Resistors and Resistor China, If You Need, Welcome To Contact Us To Know More.
Our website: www.jeccapacitor.com
>>
