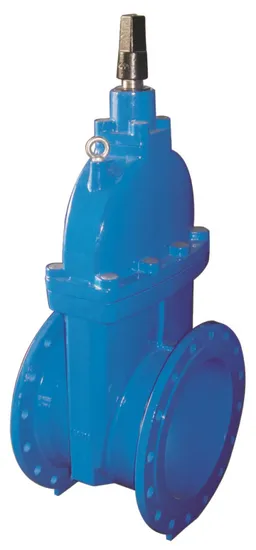

Resilient Seated Gate Valve Large Size with Cap

Product Description

Product Description
valve for non-rising stem seal gate valves of the elastic base seat wedge type single ram, using direct channel structure. Dark stem design, the valve has the remarkable installation space small feature;
ram as ductile iron skeleton + high-performance rubber, EPDM, advanced plastic injection molding technology and mature vulcanization process. The adhesive strength, tensile strength and resilience of the rubber are guaranteed, and the rubber after vulcanization has no defects such as bubble, crack and dew iron. Its binding strength meets the requirements of DVGW, and it will never fall off even if subjected to frequent extrusion stress. The bonding strength shall not be lower than 1.725mpa when measured according to GB/T 11211 standard. Make sure that the gate plates are interchangeable and the valve can be operated with low torque for sealing effect.
gate on both sides of the guide rail with wear-resisting non-toxic engineering plastic (nylon), and gate valve is firm, good appearance, can accurate orientation, and greatly reduces the valve opening and closing torque;
high strength and high precision rolling stem, self-locking performance is good, and the stem nut and flexible shaft sleeve with precision, to ensure that the valve torque is extremely low, each parts material and the machining precision can ensure valve twice in the overload torque under the action of (according to EN1074.2) without any obvious damage, has the characteristics of high life;
gate seal USES three type O sealing ring seal, has the advantages of infinite (no pollution, small torque). The ultra-high surface finish of the stem ensures that the service life of the stem o-ring is five times longer than the normal process (stem machining).
stem nut cooperate closely with the ram, and to ensure that sufficient degrees of freedom, make instant valve open/close damper under the action of water pressure free adjustment, thoroughly overcome the bending stress due to the deflection deformation under the action, and can greatly reduce operating torque, increases the service life of the valve;
contact seal for spherical sealing face of the upper gate line, contact area is lesser, open/close the valve and out of the sealing surface of short time, reduce the valve operating torque, and achieve the best sealing effect. In the sealing test, there is no structural damage to the gate plate. The base of the gate plate is changed from the domestic single seal to the double bar line seal, which effectively prevents the gate plate's axial swing under the action of water pressure, enhances the sealing performance, and can achieve two-way "zero leakage".
jacket type rubber seal gate valves leading global modular design, can be realized with pressure change on sealing ring, without removing the valve from the piping is replaceable parts, do not remove the valve cover is easy to replace the valve stem, bring a lot of convenience to very case maintenance;https://membercenter.made-in-china.com/productmanage.do?xcase=view&prodId=dNjJVyuUlchL&queryGroupId=&queryCatCode=&pageSize=30&queryState=3&prodUpgradeActivity=

Product Parameters

DN	L		H	W	Flange dimensions to DIN2501/EN1092.2											Weight(Kg)				Torque(N.m)
					D		C		g		f	T		n-d		F4		F5
	F4	F5			PN10	PN16	PN10	PN16	PN10	PN16		PN10	PN16	PN10	PN16	PN10	PN16	PN10	PN16
350	290	550	870	500	505	520	460	470	429		4	24.5	26.5	16-23	16-28	200	220	210	229	225
400	310	600	945	640	565	580	515	525	480	489	4	24.5	28	16-28	16-31	242	255	280	290	290
450	330	650	1080	640	615	640	565	585	530	548	4	25.5	30	20-28	20-31	340	355	375	391	400
500	350	700	1150	640	670	715	620	650	582	609	4	26.5	31.5	20-28	20-34	418	430	496	510	450
600	390	800	1345	640	780	840	725	770	682	720	5	30	36	20-31	20-37	705	745	800	830	500
700	430	900	1750	800	895	910	840	840	800	795	5	32.5	39.5	24-31	24-37	901	958	945	999	210
800	470	1000	1870	800	1015	1025	950	950	905	900	5	35	43	24-34	24-40	1260	1350	1380	1460	280
