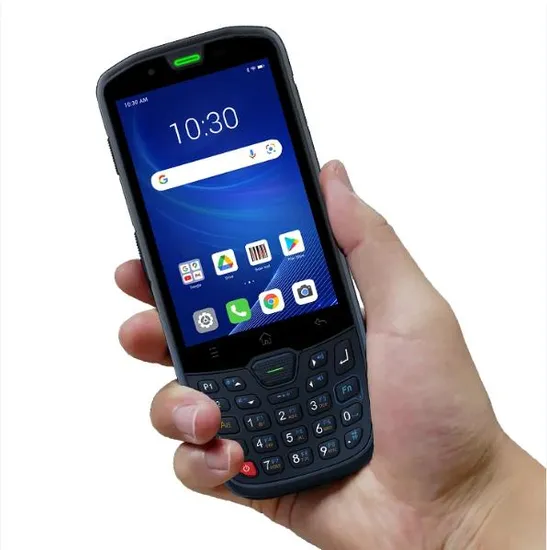

| SEUIC Data Collector Autoid 10 | |
| Performance Characteristics | |
| CPU | Cortex-A53 8-core 2.0GHz |
| OS | Android 11 |
| Memory | 4+64G |
| Physical Characteristics | |
| Dimensions | 156(H)×70(W)×22(T)mm |
| Weight | 270g |
| Display | 4.0 inch, 800(H)×480(W) (WVGA) |
| Power | Detachable 3.8V 5360mAh rechargeable Li-ion battery Built in li-ion backup battery Standard Micro USB, intelligent identification of PC and special charger; support Charging Dock |
| Expansion Slot | Micro SD Card,128GB SDHC compatible |
| Notification | Sound, Vibrator, LED indicator |
| Keypad | 17keys/22 crystal keys (buttons with backlight) |
| Voice & Audio | Built-in loudspeaker, built-in microphone |
| Data Capture | |
| Scan Engine | SE955/SE965/UE966: 1D standard range scan engine X3/X3 MR: Standard/Middle range 1D/2D imaging engine N6603 SR/N6703: Standard range 1D/2D imaging engine |
| Camera | Maximum Resolution: 3264*2448(taking photo), 1080P 60fps (taking movie) Photo Function: Auto-focus Pixel: 13mega |
| NFC | Support ISO15693, ISO14443A/B (without encryption protocol), ISO14443A tag with encryption protocol (Mifare one S50, S70 and its compatible cards); Support NFC protocol |
| User Environment | |
| Operating Temp | -20 ºC~+50 ºC |
| Storage Temp | -40ºC to + 60ºC (Battery included) -40ºC to + 70ºC (Battery excluded) |
| Humidity | 5% to 95% RH non-condensing |
| Drop Specification | Multiple 1.5m drops to marble across the operating temperature range |
| Tumble Specification | 1,000 1.64 ft./0.5 m tumbles (2,000 impacts) |
| Sealing | IP67 per IEC sealing specifications |
| ESD | ±15kV Air discharge, ±8kV direct discharge |
| Connectivity | |
| WLAN | IEEE 802.11a/b/g/n/ac(2.4G/5G dual-frequency WIFI) |
| WWAN | 2G: 850/900/1800/1900MHz 3G: B1/B2/B5/B8/B34/B39/BC0/BC1 4G: B1/B2/B3/B5/B7/B8/B38/B39/B40/B41 |
| BT | BT 4.2 (Dual mode, Support BLE) |
| GNSS | GPS, Beidou, GLONASS(Three in one) |
